Foot Master

GLH-75-ASF/BSF-NYD

Name: GLH-75-ASF/BSF-NYD
Brand: Foot Master
SKU: GLH-75-ASF-BSF-NYD-COMPACT
Availability: InStock

GLH-75-ASF/BSF-NYD

SKU:GLH-75-ASF-BSF-NYD-COMPACT

* Brackets: Pressed steel plate, double ball bearing with hardened bearing seats in the swivel head, ivory-colored aluminum frame, wheel brake system of on and off side pin, bolted wheel axle structure
* Surface Treatment: Powder coating, zinc plated
* Wheel: Nylon66(Shore D70), two ball bearings

● Model

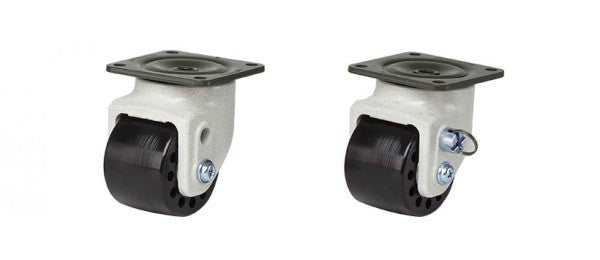

ㆍGLH-75-ASF-NYD(Swivel)
ㆍGLH-75-BSF-NYD(Swivel with brake)

View full details

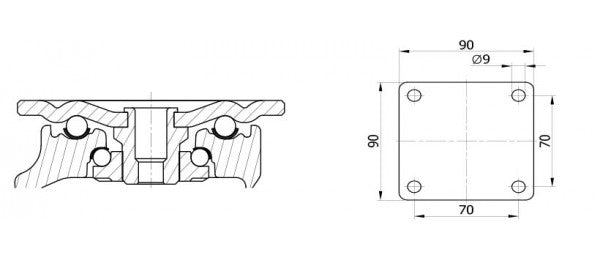

Wheel Diameter	75 mm
Width of Tread	55 mm
Hardness of Tread	70 Shore D
Size of Plate	90 x 90 mm
Plate Hole Centers	70 x 70 mm
Plate Hole	9 mm
Offset	25 mm
Overall Height	107 mm
Temperature	-10 ~ +90 ℃
Load Capacity / 1pcs	700 kg
Load Capacity / 4pcs	2,100 kg
