Foot Master

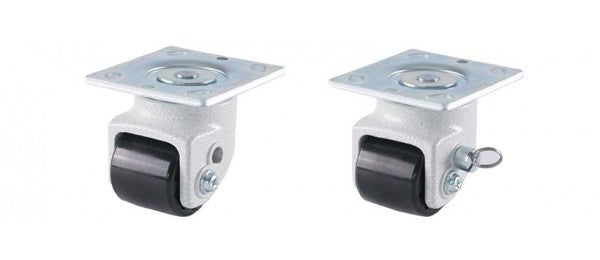

GLH-60-PUS-ASF/BSF-NYQ

GLH-60-PUS-ASF/BSF-NYQ

GLH-60-PUS-ASF-BSF-NYQ-COMPACT

Enquire Now
* Brackets: Pressed steel plate, double ball bearing with hardened bearing seats in the swivel head, ivory-colored aluminum frame, wheel brake system of on and off side pin, bolted wheel axle structure
* Surface Treatment: Powder coating, zinc plated
* Wheel: Nylon66(Shore D70), four ball bearings

● Model Name
ㆍGLH-60-ASF-NYQ-PUS(Swivel)
ㆍGLH-60-BSF-NYQ-PUS(Swivel with brake)
View full details
Wheel Diameter60 mm
Width of Tread55 mm
Hardness of Tread70 Shore D

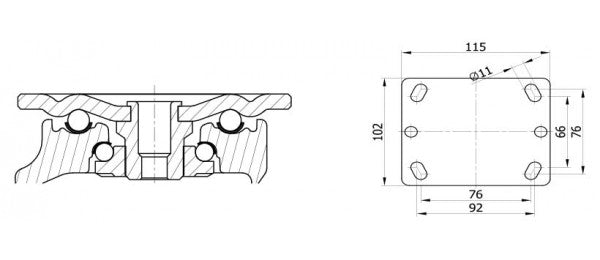

Size of Plate115 x 102 mm
Plate Hole Centers92 x 66 or 76 x 76 mm
Plate Hole11 mm
Offset25 mm
Overall Height98 mm
Temperature-10 ~ +90 ℃
Load Capacity / 1pcs600 kg
Load Capacity / 4pcs1,800 kg
