Foot Master

GLH-60-PEU-ASF/BSF-NYQ

Name: GLH-60-PEU-ASF/BSF-NYQ
Brand: Foot Master
SKU: GLH-60-PEU-ASF-BSF-NYQ-COMPACT
Availability: InStock

GLH-60-PEU-ASF/BSF-NYQ

SKU:GLH-60-PEU-ASF-BSF-NYQ-COMPACT

Enquire Now

* Brackets: Pressed steel plate, double ball bearing with hardened bearing seats in the swivel head, ivory-colored aluminum frame, wheel brake system of on and off side pin, bolted wheel axle structure
* Surface Treatment: Powder coating, zinc plated
* Wheel: Nylon66(Shore D70), four ball bearings
● Model
ㆍGLH-60-ASF-NYQ-PEU(Swivel)
ㆍGLH-60-BSF-NYQ-PEU(Swivel with brake)

View full details

Wheel Diameter	60 mm
Width of Tread	55 mm
Hardness of Tread	70 Shore D

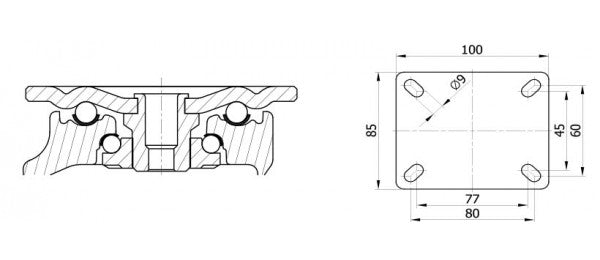

Size of Plate	100 x 85 mm
Plate Hole Centers	80 x 60 or 77 x 45 mm
Plate Hole	9 mm
Offset	25 mm
Overall Height	98 mm
Temperature	-10 ~ +90 ℃
Load Capacity / 1pc	600 kg
Load Capacity / 4pc	1,800 kg
