Foot Master

GLH-60-ASF/BSF-NYQ

Name: GLH-60-ASF/BSF-NYQ
Brand: Foot Master
SKU: GLH-60-ASF-BSF-NYQ-COMPACT
Availability: InStock

GLH-60-ASF/BSF-NYQ

SKU:GLH-60-ASF-BSF-NYQ-COMPACT

* Brackets: Pressed steel plate, double ball bearing with hardened bearing seats in the swivel head, ivory-colored aluminum frame, wheel brake system of on and off side pin, bolted wheel axle structure
* Surface Treatment: Powder coating, zinc plated
* Wheel: Nylon66(Shore D70), four ball bearings

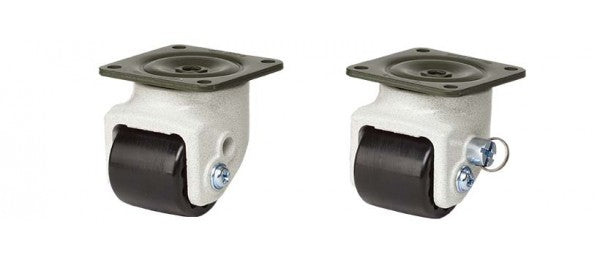

● Model
ㆍGLH-60-ASF-NYQ(Swivel)
ㆍGLH-60-BSF-NYQ(Swivel with brake)

View full details

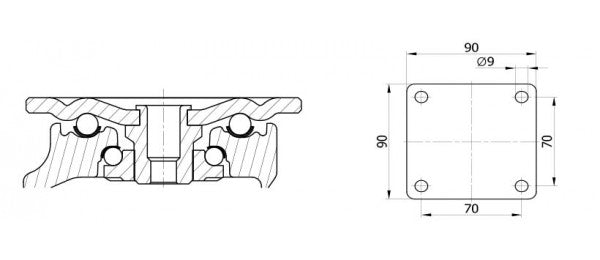

Wheel Diameter	60 mm
Width of Tread	55 mm
Hardness of Tread	70 Shore D
Size of Plate	90 x 90 mm
Plate Hole Centers	70 x 70 mm
Plate Hole	9 mm
Offset	25 mm
Overall Height	92 mm
Temperature	-10 ~ +90 ℃
Load Capacity / 1pcs	550 kg
Load Capacity / 4pcs	1,650kg
