| Wheel Diameter | 125 mm |
| Width of Tread | 30 mm |
| Hardness of Tread | 85 Shore A |

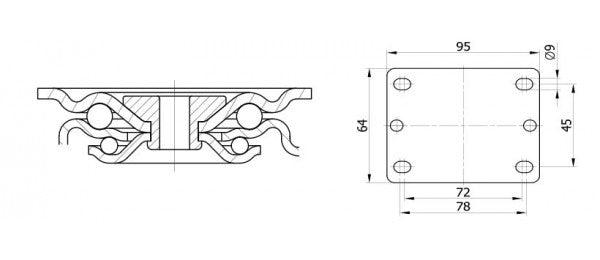

| Size of Plate | 95 x 64 mm |
| Plate Hole Centers | 78 x 45 or 72 x 45 mm |
| Plate Hole Centers | 9 mm |
| Offset | 35 mm |
| Overall Height | 157 mm |
| Temperature | -10 ~ 90 ℃ |
| Load Capacity / 1pcs | 100 kg |
| Load Capacity / 4pcs | 300 kg |
