| Wheel Diameter | 100 mm |
| Width of Tread | 30 mm |
| Hardness of Tread | 85 Shore A |

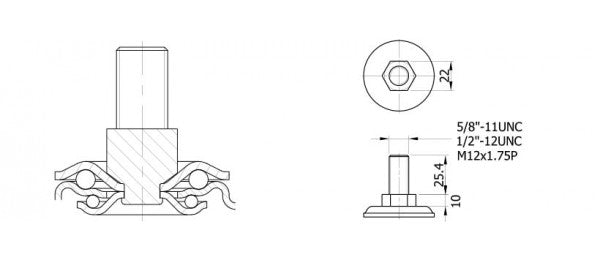

| Center Bolt | 5/8 "-11UNC or M12x1.75P or 1/2 "-12UNC |
| Bolt Length | 25 mm |
| Offset | 37 mm |
| Overall Height | 130 mm |
| Temperature | -10 ~ 90 ℃ |
| Load Capacity / 1pcs | 90 kg |
| Load Capacity / 4pcs | 270 kg |
