Foot Master

GH-130-ASF/ARF/BSF-SUD

GH-130-ASF/ARF/BSF-SUD

SKU:GH-130-ASF-ARF-BSF-SUD-MEDIUM-DUTY

Enquire Now
* Brackets: Pressed steel plate, double ball bearing with four hardened bearing seats in the swivel head which is advantageous to rapid swiveling and excellent durability, strong integrated pressed steel frame, smooth-operating top brake system, bolted wheel axle structure
* Surface Treatment: Zinc plated
* Wheel: Cast polyurethane(Shore A70), aluminum core, two ball bearings

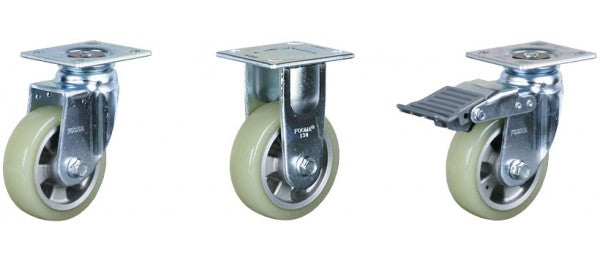

● Model
ㆍGH-130-ASF-SUD(Swivel)
ㆍGH-130-ARF-SUD(Rigid)
ㆍGH-130-BSF-SUD(Swivel with brake)
View full details
Wheel Diameter130 mm
Width of Tread40 mm
Hardness of Tread70 Shore A

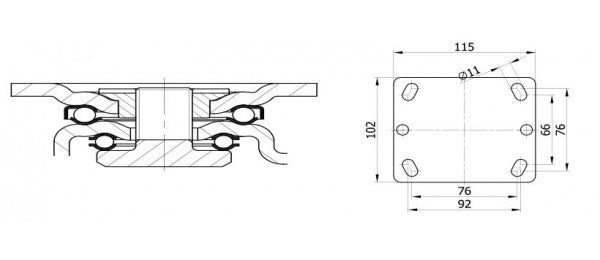

Size of Plate115 x 102 mm
Plate Hole Centers92 x 66 or 76 x 76 mm
Plate Hole11 mm
Offset50 mm
Overall Height186 mm
Temperature-10 ~ +90 ℃
Load Capacity / 1pcs270 kg
Load Capacity / 4pcs810 kg
