Foot Master

GH-130-ASF/ARF/BSF-NYD

GH-130-ASF/ARF/BSF-NYD

SKU:GH-130-ASF-ARF-BSF-NYD-MEDIUM-DUTY

Enquire Now
* Brackets: Pressed steel plate, double ball bearing with four hardened bearing seats in the swivel head which is advantageous to rapid swiveling and excellent durability, strong integrated pressed steel frame, smooth-operating top brake system, bolted wheel axle structure
* Surface Treatment: Zinc plated
* Wheel: High-Performance Nylon(Shore D70), two ball bearings

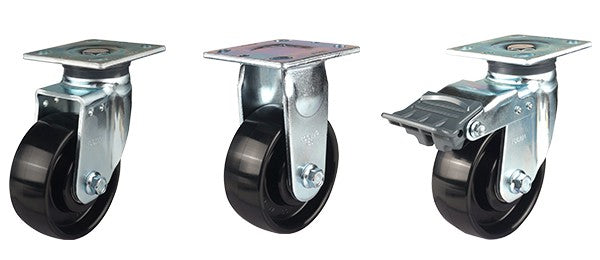

● Model
ㆍGH-130-ASF-MCD(Swivel)
ㆍGH-130-ARF-MCD(Rigid)
ㆍGH-130-BSF-MCD(Swivel with brake)
View full details
Wheel Diameter130 mm
Width of Tread48 mm
Hardness of Tread70 Shore D

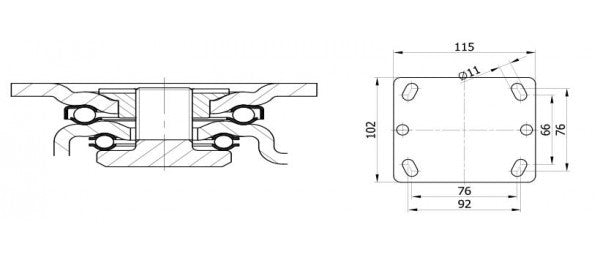

Size of Plate115 x 102 mm
Plate Hole Centers92 x 66 or 76 x 76 mm
Plate Hole11 mm
Offset50 mm
Overall Height186 mm
Temperature-10 ~ +90 ℃
Load Capacity / 1pcs600 kg
Load Capacity / 4pcs1,800 kg
