Foot Master

GH-100-ASF/ARF/BSF-HUD

GH-100-ASF/ARF/BSF-HUD

SKU:GH-100-ASF-ARF-BSF-HUD-MEDIUM-DUTY

Enquire Now
* Brackets: Pressed steel plate, double ball bearing with four hardened bearing seats in the swivel head which is advantageous to rapid swiveling and excellent durability, strong integrated pressed steel frame, smooth-operating top brake system, bolted wheel axle structure
* Surface Treatment: Zinc plated
* Wheel: Cast polyurethane(Shore A95), aluminum core, two ball bearings

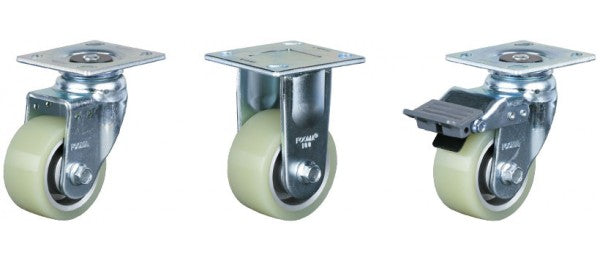

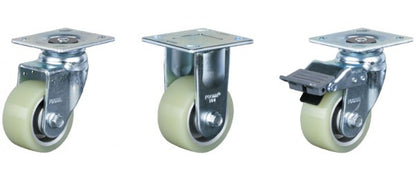

● Model
ㆍGH-100-ASF-HUD(Swivel)
ㆍGH-100-ARF-HUD(Rigid)
ㆍGH-100-BSF-HUD(Swivel with brake)
View full details
Wheel Diameter100 mm
Width of Tread48 mm
Hardness of Tread95 Shore A

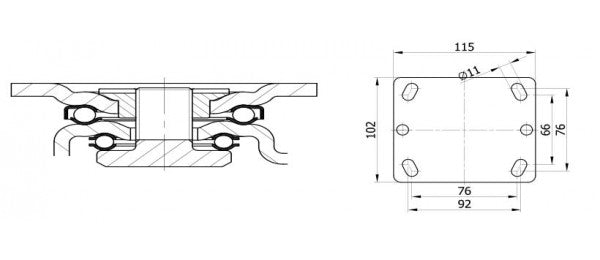

Size of Plate115 x 102 mm
Plate Hole Centers92 x 66 or 76 x 76 mm
Plate Hole11 mm
Offset50mm
Overall Height156 mm
Temperature-10 ~ +90 ℃
Load Capacity / 1pcs400 kg
Load Capacity / 4pcs1,200 kg
