Foot Master

GF-150-ASF/ARF/BSF/BRF-MCD

GF-150-ASF/ARF/BSF/BRF-MCD

GF-150-ASF-ARF-BSF-BRF-MCD-HEAVY-DUTY

Enquire Now
* Brackets: Forged steel plate, double ball bearing with hardened bearing seats in the swivel head, strong welded steel frame, steel top brake system, bolted wheel axle structure
* Surface Treatment: Powder coating, Zinc plated
* Wheel: MC nylon(Shore D80), two ball bearings

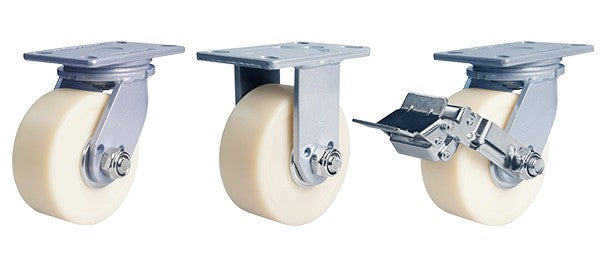

● Model
ㆍGF-150-ASF-MCD(Swivel)
ㆍGF-150-ARF-MCD(Rigid)
ㆍGF-150-BSF-MCD(Swivel with brake)
ㆍGF-150-BRF-MCD(Rigid with brake)
View full details
Wheel Diameter150 mm
Width of Tread64 mm
Hardness of Tread80 Shore D

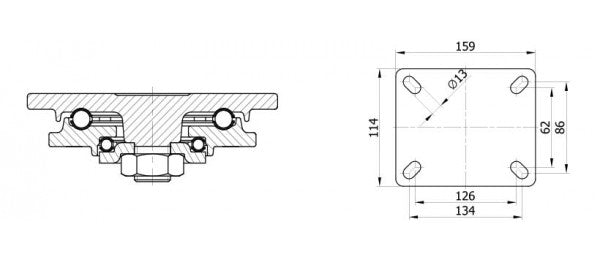

Size of Plate159 x 114 mm
Plate Hole Centers134 x 86 or 126 x 62 mm
Plate Hole13 mm
Offset52 mm
Overall Heigh190 mm
Temperature-10 ~ 90 ℃
Load Capacity / 1pcs1,000 kg
Load Capacity / 4pcs3,000 kg
