Foot Master

GF-100-ASF/ARF/BSF/BRF-MUD

GF-100-ASF/ARF/BSF/BRF-MUD

SKU:GF-100-ASF-ARF-BSF-BRF-MUD-HEAVY-DUTY

Enquire Now
* Brackets: Forged steel plate, double ball bearing with hardened bearing seats in the swivel head, strong welded steel frame, steel top brake system, bolted wheel axle structure
* Surface Treatment: Powder coating, Zinc plated
* Wheel: Cast polyurethane(Shore A95), aluminum core, two ball bearings

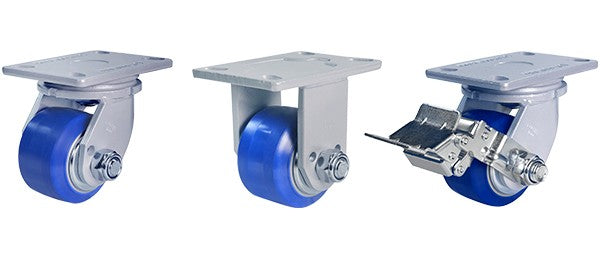

● Model
ㆍGF-100-ASF-MUD(Swivel)
ㆍGF-100-ARF-MUD(Rigid)
ㆍGF-100-BSF-MUD(Swivel with brake)
ㆍGF-100-BRF-MUD(Rigid with brake)
View full details
WheelDiameter100 mm
Widthof Tread67 mm
Hardnessof Tread95 Shore A

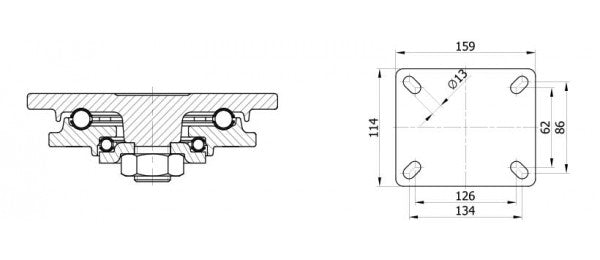

Sizeof Plate159 x 114 mm
PlateHole Centers134 x 86 or 126 x 62 mm
PlateHole13 mm
Offset37 mm
OverallHeight145 mm
Temperature-10 ~ 90 ℃
LoadCapacity / 1pcs650 kg
LoadCapacity / 4pcs1,950 kg
