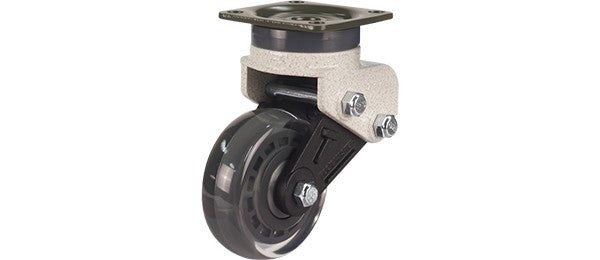

Foot Master

GDSA-65-ASF-EUS

GDSA-65-ASF-EUS

SKU:GDSA-65-ASF-EUS-AGV-AMR

Enquire Now
* Brackets: Pressed steel plate, double ball bearing with hardened bearing seats in the swivel head, ivory-colored aluminum frame, fine shock absorption function with special rubber(A65), smooth-operating top brake system, special wheel axle for reinforce of smooth rolling, AGV/AMR Dedicated Shock Absorbing Casters
* Surface Treatment: Powder coating, zinc plated
* Wheel: High elasticity polyurethane(Shore A80), PC core, one ball bearings
● Model
ㆍGDSA-65-ASF-EUS(Swivel)

● Spring hardness
ㆍ65º
View full details
Wheel Diameter64 mm
Width of Tread23 mm
Hardness of Tread80 Shore A

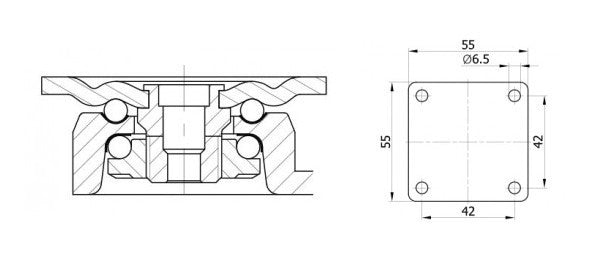

Size of Plate55 x 55 mm
Plate Hole Centers42 x 42 mm
Plate Hole6.5 mm
Shock Absorbing Extent7mm
Offset23 ~26 mm
Overall Height102-7 mm
Temperature-10 ~ +90 ℃
Load Capacity / 1pcs40 kg
Load Capacity / 4pcs120 kg
