Foot Master

GDS-75-ASS/ARS-LUD

GDS-75-ASS/ARS-LUD

SKU:GDS-75-ASS-ARS-LUD-SHOCK-ABSORBING

Enquire Now
* Brackets: Pressed steel plate, double ball bearing with hardened bearing seats in the swivel head, ivory-colored aluminum frame, fine shock absorption function with special rubber(select between A65 and A75), smooth-operating top brake system, special wheel axle for reinforce of smooth rolling
* Surface Treatment: Powder coating, zinc plated
* Wheel: Cast polyurethane(Shore A90), aluminum core, two ball bearings

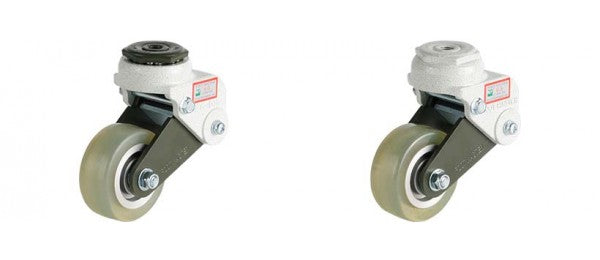

● Model
ㆍGDS-75-ASS-LUD(Swivel)
ㆍGDS-75-ARS-LUD(Rigid)

● Spring hardness selectable
ㆍ(65º or 75º) / (Standard 65º)
View full details
Wheel Diameter75 mm
Width of Tread30 mm
Hardness of Tread90 Shore A
Center BoltM12 x 1.75P
Bolt Length18 mm
Shock Absorbing Extent15 mm
Offset35 ~ 39 mm
Overall Height130 mm
Temperature-10 ~ +90 ℃
Load Capacity / 1pcs90 kg
Load Capacity / 4pcs270 kg
