Foot Master

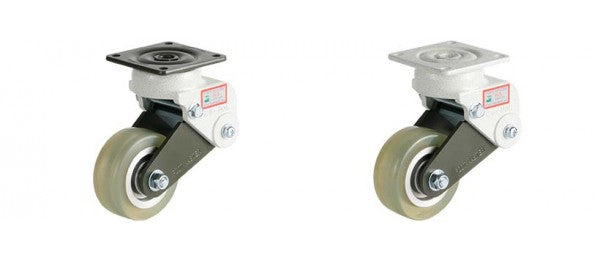

GDS-75-ASF/ARF-LUD

GDS-75-ASF/ARF-LUD

SKU:GDS-75-ASF-ARF-LUD-SHOCK-ABSORBING

Enquire Now
* Brackets: Pressed steel plate, double ball bearing with hardened bearing seats in the swivel head, ivory-colored aluminum frame, fine shock absorption function with special rubber(select between A65 and A75), smooth-operating top brake system, special wheel axle for reinforce of smooth rolling
* Surface Treatment: Powder coating, zinc plated
* Wheel: Cast polyurethane(Shore A90), aluminum core, two ball bearings

● Model
ㆍGDS-75-ASF-LUD(Swivel)
ㆍGDS-75-ARF-LUD(Rigid)

● Spring hardness selectable
ㆍ(65º or 75º) / (Standard 65º)
View full details
Wheel Diameter75 mm
Width of Tread30 mm
Hardness of Tread90 Shore A

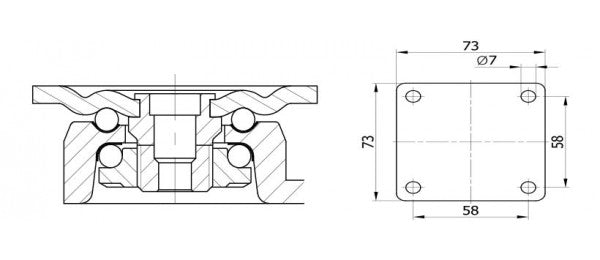

Size of Plate73 x 73 mm
Plate Hole Centers58 x 58 mm
Plate Hole7 mm
Shock Absorbing Extent15 mm
Offset35 ~ 39 mm
Overall Height130 mm
Temperature-10 ~ +90 ℃
Load Capacity / 1pcs90 kg
Load Capacity / 4pcs270 kg
