Foot Master

GDS-65-PUS-ASF/BSF/ARF/BRF-EUS

GDS-65-PUS-ASF/BSF/ARF/BRF-EUS

SKU:GDS-65-PUS-ASF-BSF-ARF-BRF-EUS-SHOCK-ABSORBING

Enquire Now

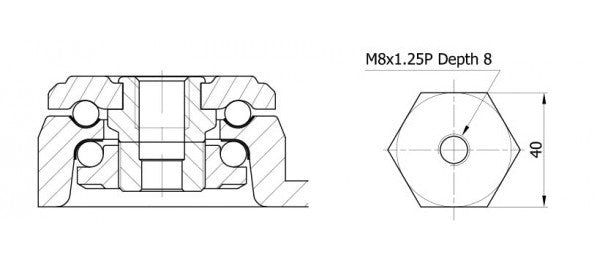

* Brackets: Pressed steel plate, double ball bearing with hardened bearing seats in the swivel head, ivory-colored aluminum frame, fine shock absorption function with special rubber(A65), smooth-operating top brake system, special wheel axle for reinforce of smooth rolling
* Surface Treatment: Powder coating, zinc plated
* Wheel: High elasticity polyurethane(Shore A80), PC core, one ball bearings

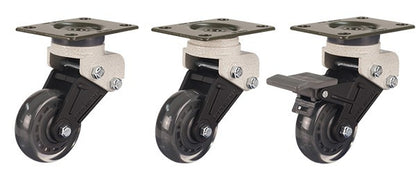

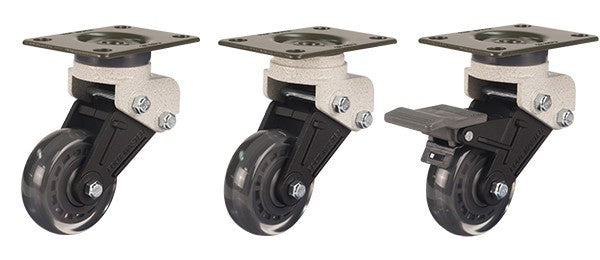

● Model
ㆍGDS-65-ASF-EUS-PUS(Swivel)
ㆍGDS-65-ARF-EUS-PUS(Rigid)
ㆍGDS-65-BSF-EUS-PUS(Swivel with brake)
ㆍGDS-65-BRF-EUS-PUS(Rigid with brake)

● Spring hardness
ㆍ65º
View full details
Wheel Diameter64 mm
Width of Tread23 mm
Hardness of Tread80 Shore A
Size of Plate95 x 64 mm
Plate Hole Centers78 x 45 or 72 x 45 mm
Plate Hole9 mm
Shock Absorbing Extent10mm
Offset30 ~ 36 mm
Overall Height115-10 mm
Temperature-10 ~ +90 ℃
Load Capacity / 1pcs50 kg
Load Capacity / 4pcs150 kg
