Foot Master

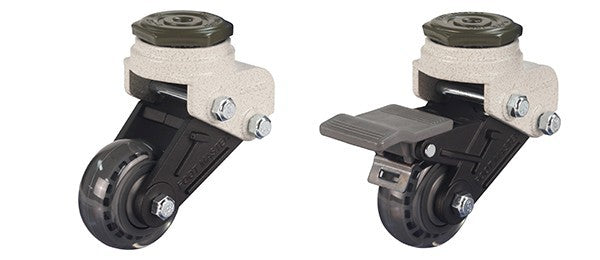

GDS-50-ASS/BSS-EUS

GDS-50-ASS/BSS-EUS

SKU:GDS-50-ASS-BSS-EUS-SHOCK-ABSORBING

Enquire Now
* Brackets: Pressed steel plate, double ball bearing with hardened bearing seats in the swivel head, ivory-colored aluminum frame, fine shock absorption function with special rubber(A65), smooth-operating top brake system, special wheel axle for reinforce of smooth rolling
* Surface Treatment: Powder coating, zinc plated
* Wheel: High elasticity polyurethane(Shore A80), PC core, one ball bearings
● Model
ㆍGDS-50-ASS-EUS(Swivel)
ㆍGDS-50-BSS-EUS(Swivel with brake)

● Spring hardness
ㆍ65º
View full details
Wheel Diameter50 mm
Width of Tread23 mm
Hardness of Tread80 Shore A

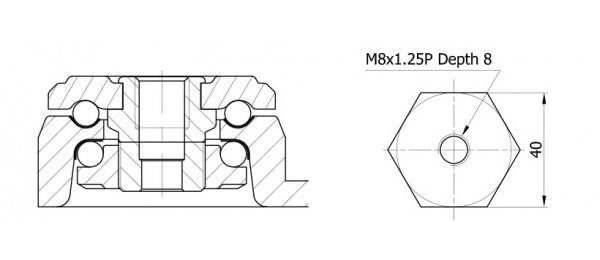

Center BoltM8 x 1.25P
Bolt Length10 mm
Shock Absorbing Extent10mm
Offset30 ~ 34 mm
Overall Height100-10 mm
Temperature-10 ~ +90 ℃
Load Capacity / 1pcs40 kg
Load Capacity / 4pcs120 kg
