Foot Master

GDS-200-PEU-ASF/BSF/ARF/BRF-HUD

GDS-200-PEU-ASF/BSF/ARF/BRF-HUD

SKU:GDS-200-PEU-ASF-BSF-ARF-BRF-HUD-SHOCK-ABSORBING

Enquire Now
* Brackets: Pressed steel plate, double ball bearing with hardened bearing seats in the swivel head, ivory-colored aluminum frame, fine shock absorption function with special rubber(select between A65 and A75), smooth-operating top brake system, special wheel axle for reinforce of smooth rolling
* Surface Treatment: Powder coating, zinc plated
* Wheel: Cast polyurethane(Shore A95), aluminum core, two ball bearings

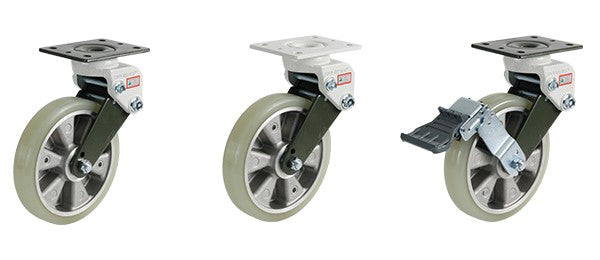

● Model
ㆍGDS-200-ASF-HUD-PEU(Swivel)
ㆍGDS-200-ARF-HUD-PEU(Rigid)
ㆍGDS-200-BSF-HUD-PEU(Swivel with brake)
ㆍGDS-200-BRF-HUD-PEU(Rigid with brake)

● Spring hardness selectable
ㆍ(65º or 75º) / (Standard 65º)
View full details
Wheel Diameter200 mm
Width of Tread40 mm
Hardness of Tread95 Shore A

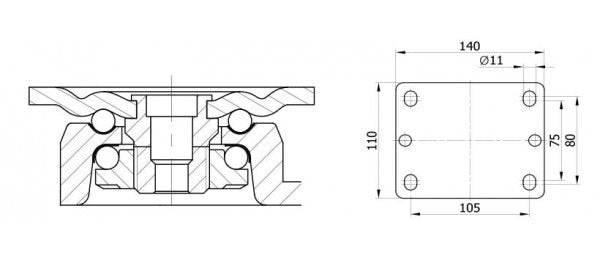

Size of Plate140 x 110 mm
Plate Hole Centers105 x 80 or 105 x 75 mm
Plate Hole11 mm
Shock Absorbing Extent35 mm
Offset55 ~ 76 mm
Overall Height270 mm
Temperature-10 ~ +90 ℃
Load Capacity / 1pcs350 kg
Load Capacity / 4pcs1,050 kg
