Foot Master

GDS-200-ASS/ARS/BSS/BRS-HUD

GDS-200-ASS/ARS/BSS/BRS-HUD

SKU:GDS-200-ASS-ARS-BSS-BRS-HUD-SHOCK-ABSORBING

Enquire Now
* Brackets: Forged steel plate, double ball bearing with hardened bearing seats in the swivel head, ivory-colored aluminum frame, fine shock absorption function with special rubber(select between A65 and A75), smooth-operating top brake system, special wheel axle for reinforce of smooth rolling
* Surface Treatment: Powder coating, zinc plated
* Wheel: Cast polyurethane(Shore A95), aluminum core, two ball bearings

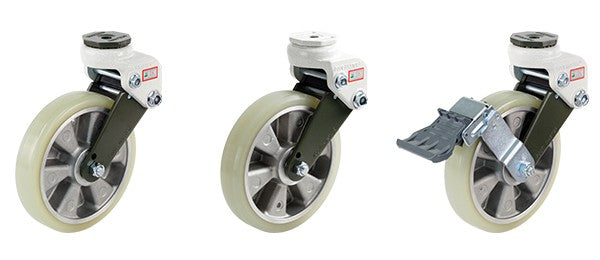

● Model
ㆍGDS-200-ASS-HUD(Swivel)
ㆍGDS-200-ARS-HUD(Rigid)
ㆍGDS-200-BSS-HUD(Swivel with brake)
ㆍGDS-200-BRS-HUD(Rigid with brake)

● Spring hardness selectable
ㆍ(65º or 75º) / (Standard 65º)
View full details
Wheel Diameter200 mm
Width of Tread40 mm
Hardness of Tread95 Shore A

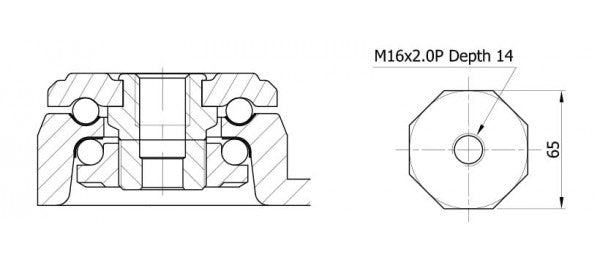

Center BoltM16 x 2.0P
Bolt Length24 mm
Shock Absorbing Extent35 mm
Offset55 ~ 76 mm
Overall Height270 mm
Temperature-10 ~ +90 ℃
Load Capacity / 1pcs350 kg
Load Capacity / 4pcs1,050 kg
