Foot Master

GDS-130-PUS-ASF/BSF/ARF/BRF-HUD

GDS-130-PUS-ASF/BSF/ARF/BRF-HUD

SKU:GDS-130-PUS-ASF-BSF-ARF-BRF-HUD-SHOCK-ABSORBING

Enquire Now
* Brackets: Pressed steel plate, double ball bearing with hardened bearing seats in the swivel head, ivory-colored aluminum frame, fine shock absorption function with special rubber(select between A65 and A75), smooth-operating top brake system, special wheel axle for reinforce of smooth rolling
* Surface Treatment: Powder coating, zinc plated
* Wheel: Cast polyurethane(Shore A95), aluminum core, two ball bearings

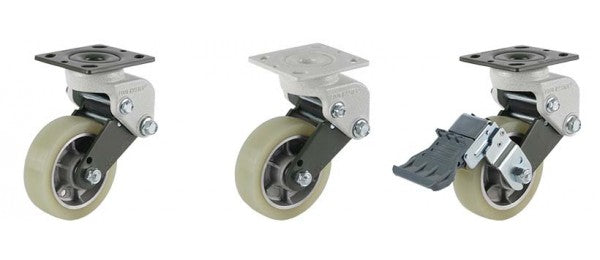

● Model
ㆍGDS-130-ASF-HUD-PUS(Swivel)
ㆍGDS-130-ARF-HUD-PUS(Rigid)
ㆍGDS-130-BSF-HUD-PUS(Swivel with brake)
ㆍGDS-130-BRF-HUD-PUS(Rigid with brake)

● Spring hardness selectable
ㆍ(65º or 75º) / (Standard 65º)
View full details
Wheel Diameter130 mm
Width of Tread40 mm
Hardness of Tread95 Shore A

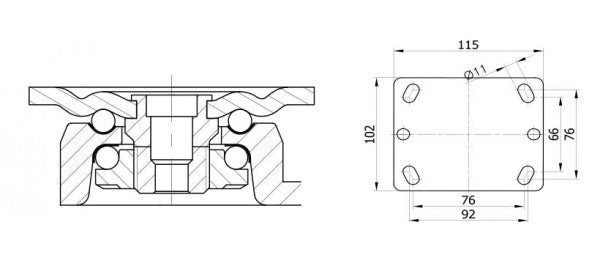

Size of Plate115 x 102 mm
Plate Hole Centers92 x 66 or 76 x 76 mm
Plate Hole11 mm
Shock Absorbing Extent30 mm
Offset36 ~ 50 mm
Overall Height200 mm
Temperature-10 ~ +90 ℃
Load Capacity / 1pcs350 kg
Load Capacity / 4pcs1,050 kg
