Foot Master

GDS-125-PEU-ASF/BSF/ARF/BRF-LUD

GDS-125-PEU-ASF/BSF/ARF/BRF-LUD

SKU:GDS-125-PEU-ASF-BSF-ARF-BRF-LUD-SHOCK-ABSORBING

Enquire Now
* Brackets: Pressed steel plate, double ball bearing with hardened bearing seats in the swivel head, ivory-colored aluminum frame, fine shock absorption function with special rubber(select between A65 and A75), smooth-operating top brake system, special wheel axle for reinforce of smooth rolling
* Surface Treatment: Powder coating, zinc plated
* Wheel: Cast polyurethane(Shore A90), aluminum core, two ball bearings

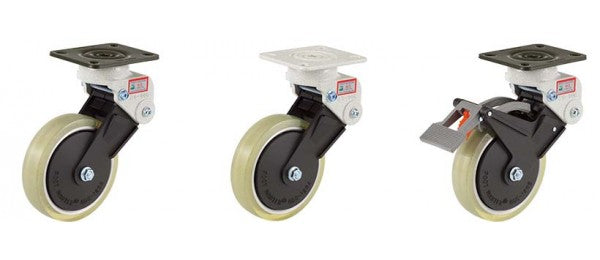

● Model
ㆍGDS-125-ASF-LUD(Swivel)
ㆍGDS-125-ARF-LUD(Rigid)
ㆍGDS-125-BSF-LUD(Swivel with brake)
ㆍGDS-125-BRF-LUD(Rigid with brake)

● Spring hardness selectable
ㆍ(65º or 75º) / (Standard 65º)
View full details
Wheel Diameter125 mm
Width of Tread30 mm
Hardness of Tread90 Shore A

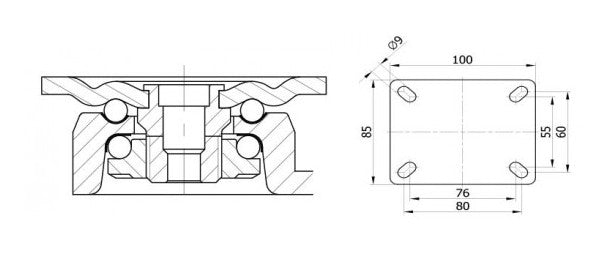

Size of Plate100 x 85 mm
Plate Hole Centers80 x 60 or 76 x 55 mm
Plate Hole9 mm
Shock Absorbing Extent20 mm
Offset45 ~ 54 mm
Overall Height187 mm
Temperature-10 ~ +90 ℃
Load Capacity / 1pcs100 kg
Load Capacity / 4pcs300 kg
