Foot Master

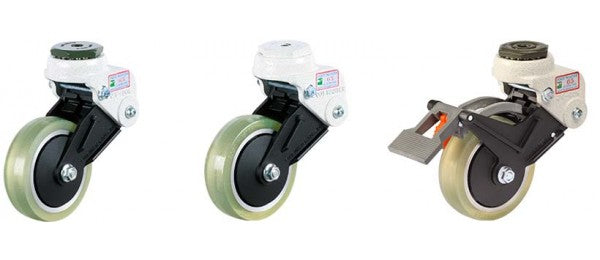

GDS-100-ASS/ARS/BSS/BRS-LUD

GDS-100-ASS/ARS/BSS/BRS-LUD

SKU:GDS-100-ASS-ARS-BSS-BRS-LUD-SHOCK-ABSORBING

Enquire Now
* Brackets: Pressed steel plate, double ball bearing with hardened bearing seats in the swivel head, ivory-colored aluminum frame, fine shock absorption function with special rubber(select between A65 and A75), smooth-operating top brake system, special wheel axle for reinforce of smooth rolling
* Surface Treatment: Powder coating, zinc plated
* Wheel: Cast polyurethane(Shore A90), aluminum core, two ball bearings

● Model
ㆍGDS-100-ASS-LUD(Swivel)
ㆍGDS-100-ARS-LUD(Rigid)
ㆍGDS-100-BSS-LUD(Swivel with brake)
ㆍGDS-100-BRS-LUD(Rigid with brake)

● Spring hardness selectable
ㆍ(65º or 75º) / (Standard 65º)
View full details
Wheel Diameter100 mm
Width of Tread30 mm
Hardness of Tread90 Shore A

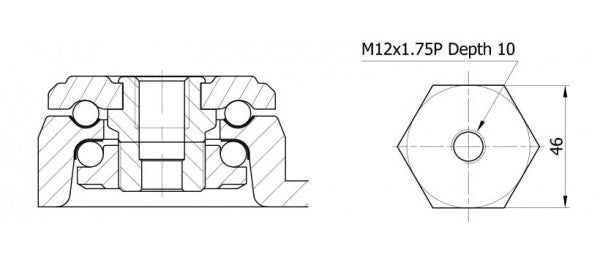

Center BoltM12 x 1.75P
Bolt Length18 mm
Shock Absorbing Extent20 mm
Offset45 ~ 53 mm
Overall Height160 mm
Temperature-10 ~ +90 ℃
Load Capacity / 1pcs100 kg
Load Capacity / 4pcs300 kg
