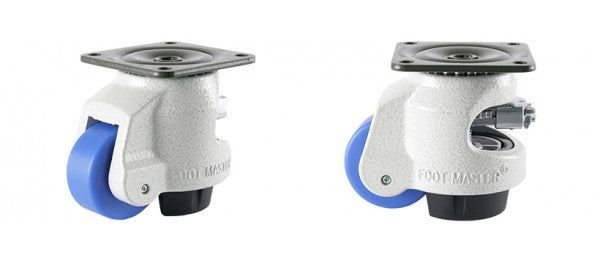

Foot Master

GDR-80-F-MCN

Name: GDR-80-F-MCN
Brand: Foot Master
SKU: GDR-80-F-MCN-LEVELING
Availability: InStock

GDR-80-F-MCN

SKU:GDR-80-F-MCN-LEVELING

* Brackets: Pressed steel plate, double ball bearing with hardened bearing seats in the swivel head, ivory-colored aluminum frame, height adjustment with integrated ratchet handle, anti-vibration NBR pad
* Surface Treatment: Powder coating, zinc plated
* Wheel: MC nylon(Shore D80), no bearing
● Model
ㆍGDR-80-F-MCN

View full details

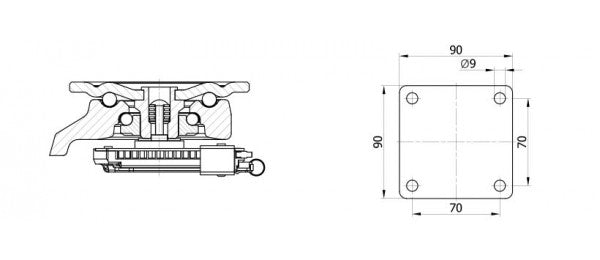

Wheel Diameter	62 mm
Width of Tread	28 mm
Hardness of Tread	80 Shore D
Size of Plate	90 x 90 mm
Plate Hole Centers	70 x 70 mm
Plate Hole	9 mm
Leveling Extent	15 mm
Offset	46 mm
Overall Height	103 mm
Temperature	-10 ~ +90 ℃
Load Capacity / 1pcs	500 kg
Load Capacity / 4pcs	1,000 kg

※ The NBR pad may be deflected by the load a bit.
