| Wheel Diameter | 50 mm |
| Width of Tread | 25 mm |
| Hardness of Tread | 70 Shore D |

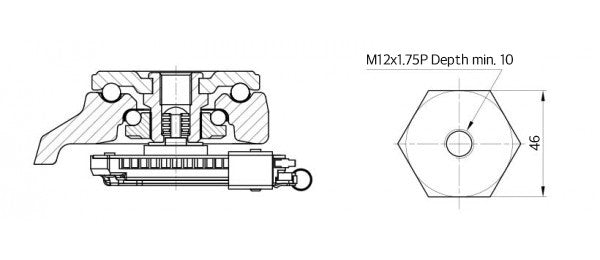

| Center Bolt | M12 x 1.75P |
| Bolt Length | 18 mm |
| Leveling Extent | 10 mm |
| Offset | 38 mm |
| Overall Height | 82 mm |
| Temperature | -10 ~ +90 ℃ |
| Load Capacity / 1pcs | 250 kg |
| Load Capacity / 4pcs | 500 kg |
※ The NBR pad may be deflected by the load a bit.
