| Wheel Diameter | 49 mm |
| Width of Tread | 25 mm |
| Hardness of Tread | 80 Shore D |

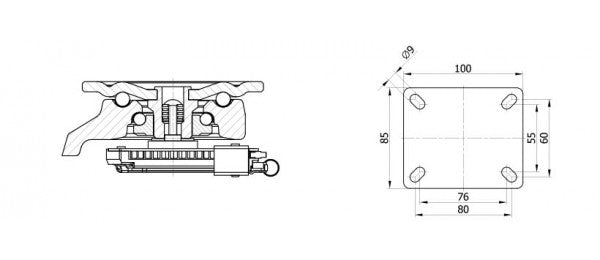

| Size of Plate | 100 x 85 mm |
| Plate Hole Centers | 80 x 60 or 76 x 55 mm |
| Plate Hole | 9 mm |
| Leveling Extent | 10 mm |
| Offset | 38 mm |
| Overall Height | 82 mm |
| Temperature | -10 ~ +90 ℃ |
| Load Capacity / 1pcs | 250 kg |
| Load Capacity / 4pcs | 500 kg |
※ The NBR pad may be deflected by the load a bit.
