Foot Master

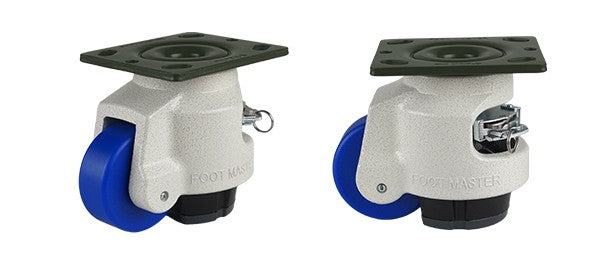

GDR-100-PUS-F-MCN

Name: GDR-100-PUS-F-MCN
Brand: Foot Master
SKU: GDR-100-PUS-F-MCN-LEVELING
Availability: InStock

GDR-100-PUS-F-MCN

SKU:GDR-100-PUS-F-MCN-LEVELING

* Brackets: Pressed steel plate, double ball bearing with hardened bearing seats in the swivel head, ivory-colored aluminum frame, height adjustment with integrated orange handle or spanner, Nylon+Tpu pad
* Surface Treatment: Powder coating, zinc plated
* Wheel: MC nylon(Shore D80), no bearing
● Model
ㆍGDR-100-F-MCN-PUS

View full details

Wheel Diameter	74 mm
Width of Tread	30 mm
Hardness of Tread	80 Shore D

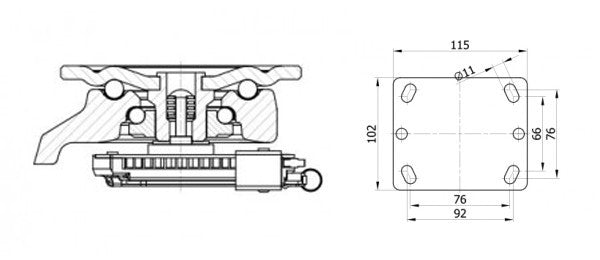

Size of Plate	115 x 102 mm
Plate Hole Centers	92 x 66 or 76 x 76 mm
Plate Hole	11 mm
Leveling Extent	12 mm
Offset	53 mm
Overall Height	120 mm
Temperature	-10 ~ +90 ℃
Load Capacity / 1pcs	750 kg
Load Capacity / 4pcs	1,500 kg

※ The NBR pad may be deflected by the load a bit.
