Foot Master

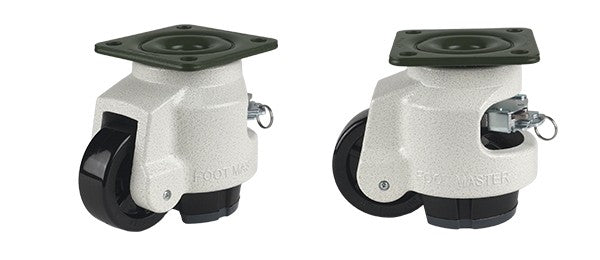

GDR-100-F-NYN

GDR-100-F-NYN

GDR-100-F-NYN-LEVELING

Enquire Now
* Brackets: Pressed steel plate, double ball bearing with hardened bearing seats in the swivel head, ivory-colored aluminum frame, height adjustment with integrated orange handle or spanner, Nylon+Tpu pad
* Surface Treatment: Powder coating, zinc plated
* Wheel: Nylon66(Shore D70), no bearing
● Model
ㆍGDR-100-F-NYN
View full details
Wheel Diameter75 mm
Width of Tread30 mm
Hardness of Tread70 Shore D

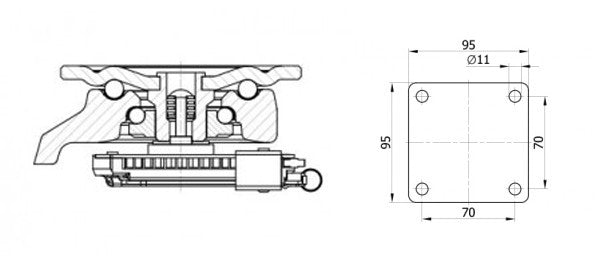

Size of Plate95 x 95 mm
Plate Hole Centers70 x 70 mm
Plate Hole11 mm
Leveling Extent12 mm
Offset53 mm
Overall Height120 mm
Temperature-10 ~ +90 ℃
Load Capacity / 1pcs750 kg
Load Capacity / 4pcs1,500 kg


※ The NBR pad may be deflected by the load a bit.
