Foot Master

GDR-100-F-HUP

GDR-100-F-HUP

GDR-100-F-HUP-LEVELING

Enquire Now

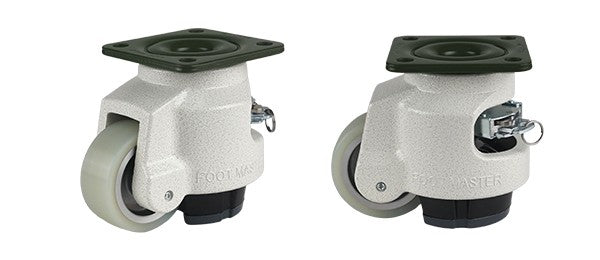

* Brackets: Pressed steel plate, double ball bearing with hardened bearing seats in the swivel head, ivory-colored aluminum frame, height adjustment with integrated orange handle or spanner, Nylon+Tpu pad
* Surface Treatment: Powder coating, zinc plated
* Wheel: Cast polyurethane(Shore D70), aluminum core, plain bearing

● Model
ㆍGDR-100-F-HUP
View full details
Wheel Diameter75 mm
Width of Tread30 mm
Hardness of Tread70 Shore D

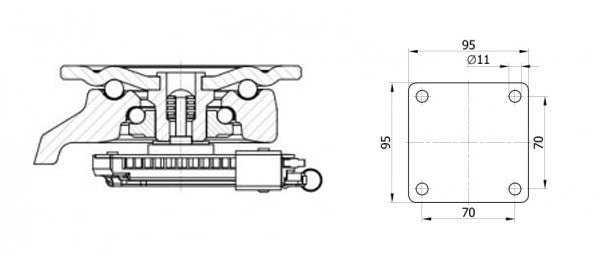

Size of Plate95 x 95 mm
Plate Hole Centers70 x 70 mm
Plate Hole11 mm
Leveling Extent12 mm
Offset53 mm
Overall Height120 mm
Temperature-10 ~ +90 ℃
Load Capacity / 1pcs750 kg
Load Capacity / 4pcs1,500 kg

　

※ The NBR pad may be deflected by the load a bit.
