| Wheel Diameter | 63 mm |
| Width of Tread | 28 mm |
| Hardness of Tread | 70 Shore D |

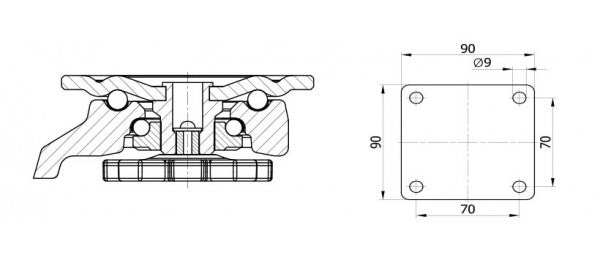

| Size of Plate | 90 x 90 mm |
| Plate Hole Centers | 70 x 70 mm |
| Plate Hole | 9 mm |
| Leveling Extent | 15 mm |
| Offset | 46 mm |
| Overall Height | 103 mm |
| Temperature | -10 ~ +90 ℃ |
| Load Capacity / 1pcs | 500 kg |
| Load Capacity / 4pcs | 1,000 kg |
※ The NBR pad may be deflected by the load a bit.
