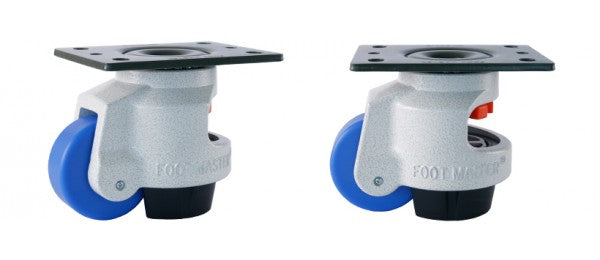

Foot Master

GDN-100-PEU-F-MCN

Name: GDN-100-PEU-F-MCN
Brand: Foot Master
SKU: GDN-100-PEU-F-MCN-LEVELING
Availability: InStock

GDN-100-PEU-F-MCN

SKU:GDN-100-PEU-F-MCN-LEVELING

* Brackets: Pressed steel plate, double ball bearing with hardened bearing seats in the swivel head, ivory-colored aluminum frame, height adjustment with integrated orange handle or spanner, anti-vibration NBR pad
* Surface Treatment: Powder coating, zinc plated
* Wheel: MC nylon(Shore D80), no bearing

● Model
ㆍGDN-100-F-MCN-PEU

View full details

Wheel Diameter	74 mm
Width of Tread	30 mm
Hardness of Tread	80 Shore D
Size of Plate	140 x 110 mm
Plate Hole Centers	105 x 80 or 105 x 75 mm
Plate Hole	11 mm
Leveling Extent	12 mm
Offset	53 mm
Overall Height	120 mm
Temperature	-10 ~ +90 ℃
Load Capacity / 1pcs	750 kg
Load Capacity / 4pcs	1,500 kg

※ The NBR pad may be deflected by the load a bit.
