Foot Master

GDL-65-ASF-HUP

Name: GDL-65-ASF-HUP
Brand: Foot Master
SKU: GDL-65-ASF-HUP-LEVELING
Availability: InStock

GDL-65-ASF-HUP

SKU:GDL-65-ASF-HUP-LEVELING

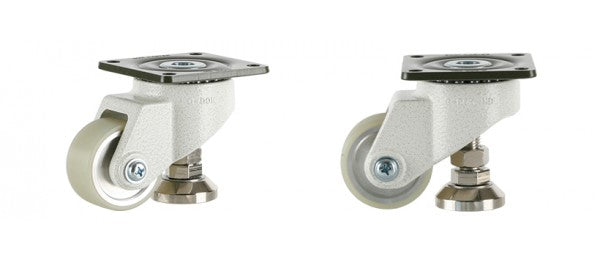

* Brackets: Pressed steel plate, double ball bearing with hardened bearing seats in the swivel head, ivory-colored aluminum fame, height adjustment with spanner, bolted wheel axle structure
* Surface Treatment: Powder coating, zinc plated
* Wheel: Cast polyurethane(Shore D70), aluminum core, plain bearing
● Model
ㆍGDL-65-ASF-HUP(Swivel)

View full details

Wheel Diameter	63 mm
Width of Tread	28 mm
Hardness of Tread	70 Shore D

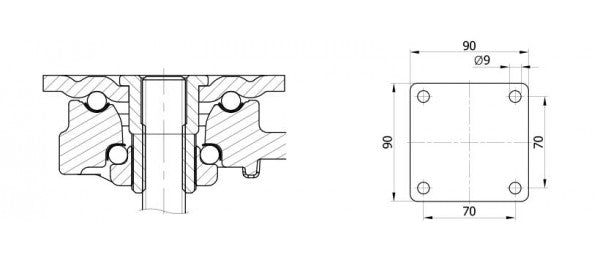

Size of Plate	90 x 90 mm
Plate Hole Centers	70 x 70 mm
Plate Hole	9.5 mm
Leveling Extent	18 mm
Offset	56 mm
Overall Height	98 mm
Temperature	-10 ~ +90 ℃
Load Capacity / 1pcs	500 kg
Load Capacity / 4pcs	1,500 kg
