Foot Master

GDH-75-ASF/BSF-NYD

GDH-75-ASF/BSF-NYD

SKU:GDH-75-ASF-BSF-NYD-LEVELING

Enquire Now

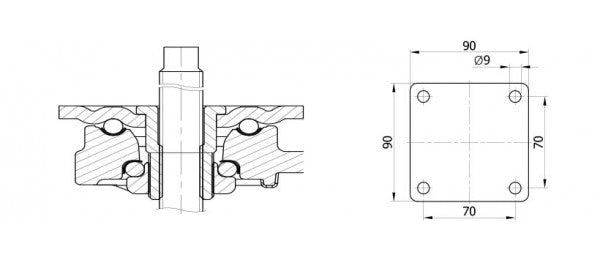

* Brackets: Pressed steel plate, double ball bearing with hardened bearing seats in the swivel head, ivory-colored aluminum fame, height adjustment with spanner, wheel brake system of on and off side pin, bolted wheel axle structure
* Surface Treatment: Powder coating, zinc plated
* Wheel: Nylon66(Shore D70), two ball bearings

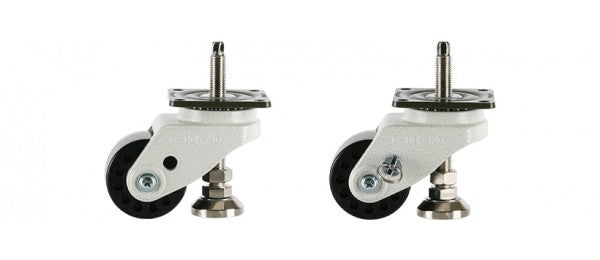

● Model
ㆍGDH-75-ASF-NYD(Swivel)
ㆍGDH-75-BSF-NYD(Swivel with brake)
View full details
Wheel Diameter75 mm
Width of Tread55 mm
Hardness of Tread70 Shore D
Size of Plate90 x 90 mm
Plate Hole Centers70 x 70 mm
Plate Hole9.5 mm
Bolt StandardM16 x 60L
Leveling Extent35 mm
Offset64 mm
Overall Height110 mm
Temperature-10 ~ +90 ℃
Load Capacity / 1pcs700 kg
Load Capacity / 4pcs2,100 kg
