Foot Master

GD-60-S-HUP

Name: GD-60-S-HUP
Brand: Foot Master
SKU: GD-60-S-HUP-LEVELING
Availability: InStock

GD-60-S-HUP

SKU:GD-60-S-HUP-LEVELING

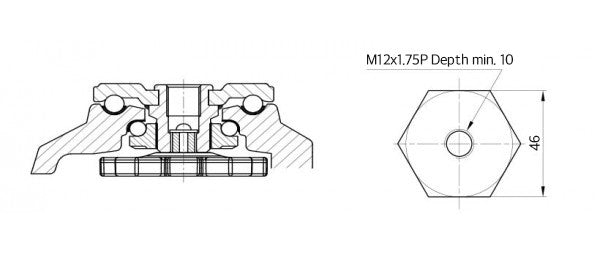

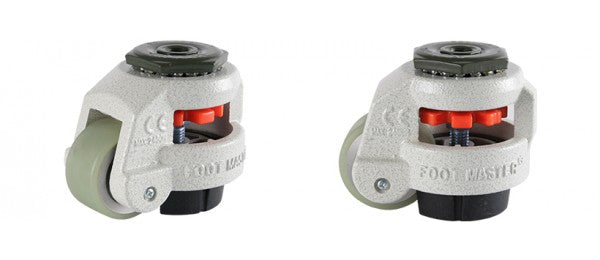

* Brackets: Pressed steel plate, double ball bearing with hardened bearing seats in the swivel head, ivory-colored aluminum frame, height adjustment with integrated orange handle or spanner, anti-vibration NBR pad
* Surface Treatment: Powder coating, zinc plated
* Wheel: Cast polyurethane(Shore D70), aluminum core, plain bearing

● Model
ㆍGD-60-S-HUP

View full details

Wheel Diameter	50 mm
Width of Tread	25 mm
Hardness of Tread	70 Shore D
Center Bolt	M12 x 1.75P
Bolt Length	18 mm
Leveling Extent	10 mm
Offset	36 mm
Overall Height	82 mm
Temperature	-10 ~ +90 ℃
Load Capacity / 1pcs	280 kg
Load Capacity / 4pcs	560 kg

　
※ The NBR pad may be deflected by the load a bit.
