| Wheel Diameter | 50 mm |
| Width of Tread | 25 mm |
| Hardness of Tread | 70 Shore D |

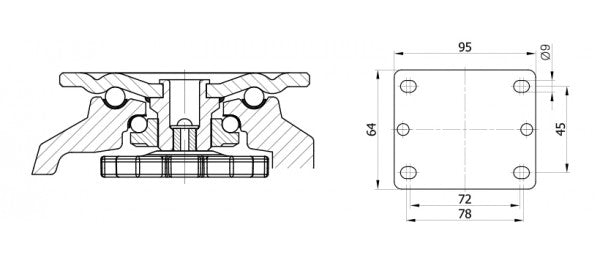

| Size of Plate | 95 x 64 mm |
| Plate Hole Centers | 78 x 45 or 72 x 45 mm |
| Plate Hole | 9 mm |
| Leveling Extent | 10 mm |
| Offset | 36 mm |
| Overall Height | 82 mm |
| Temperature | -10 ~ +90 ℃ |
| Load Capacity / 1pcs | 280 kg |
| Load Capacity / 4pcs | 560 kg |
※ The NBR pad may be deflected by the load a bit.
