Foot Master

GD-60-PEU-F-NYN

Name: GD-60-PEU-F-NYN
Brand: Foot Master
SKU: GD-60-PEU-F-NYN-LEVELING
Availability: InStock

GD-60-PEU-F-NYN

SKU:GD-60-PEU-F-NYN-LEVELING

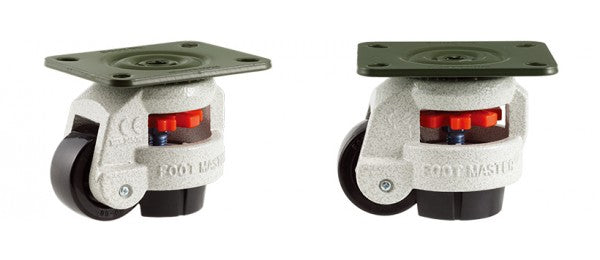

* Brackets: Pressed steel plate, double ball bearing with hardened bearing seats in the swivel head, ivory-colored aluminum frame, height adjustment with integrated orange handle or spanner, anti-vibration NBR pad
* Surface Treatment: Powder coating, zinc plated
* Wheel: Nylon66(Shore D70), no bearing
● Model
ㆍGD-60-F-NYN-PEU

View full details

Wheel Diameter	50 mm
Width of Tread	25 mm
Hardness of Tread	70 Shore D

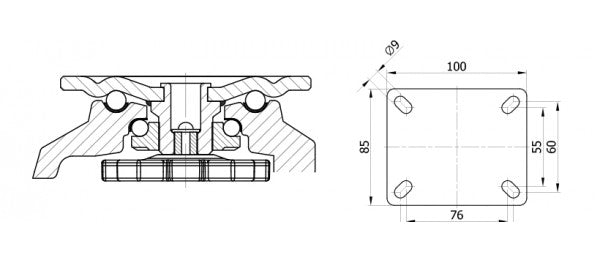

Size of Plate	100 x 85 mm
Plate Hole Centers	80 x 60 mm or 76 x 55mm
Plate Hole	9 mm
Leveling Extent	10 mm
Offset	36 mm
Overall Height	82 mm
Temperature	-10 ~ +90 ℃
Load Capacity / 1pcs	280 kg
Load Capacity / 4pcs	560 kg

※ The NBR pad may be deflected by the load a bit.
