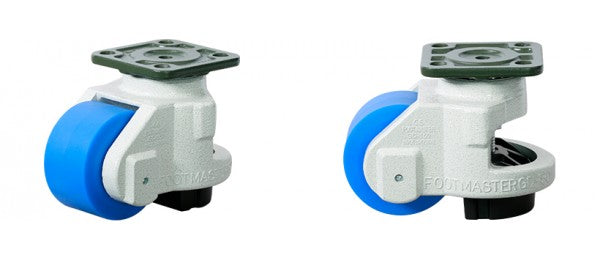

Foot Master

GD-150-F-MCN

Name: GD-150-F-MCN
Brand: Foot Master
SKU: GD-150-F-MCN-LEVELING
Availability: InStock

SKU:GD-150-F-MCN-LEVELING

* Brackets: Forged steel plate, double ball bearing with hardened bearing seats in the swivel head, ivory-colored aluminum frame, height adjustment with spanner, aluminum pad
* Surface Treatment: Powder coating, zinc plated
* Wheel: MC nylon(Shore D80), no bearing

● Model
ㆍGD-150-F-MCN

View full details

Wheel Diameter	90 mm
Width of Tread	55 mm
Hardness of Tread	80 Shore D

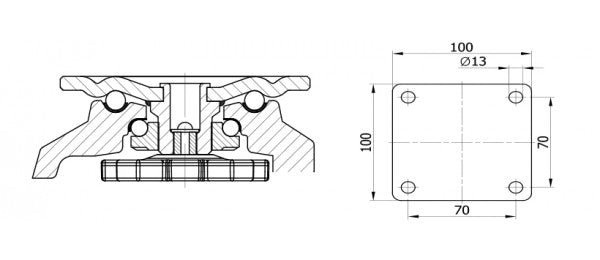

Size of Plate	100 x 100 mm
Plate Hole Centers	70 x 70 mm
Plate Hole	13 mm
Leveling Extent	15 mm
Offset	69 mm
Overall Height	132 mm
Temperature	-10 ~ +90 ℃
Load Capacity / 1pcs	1,500 kg
Load Capacity / 4pcs	3,000 kg
