Foot Master

GD-120-PUS-F-NYN

Name: GD-120-PUS-F-NYN
Brand: Foot Master
SKU: GD-120-PUS-F-NYN-LEVELING
Availability: InStock

GD-120-PUS-F-NYN

SKU:GD-120-PUS-F-NYN-LEVELING

* Brackets: Pressed steel plate, double ball bearing with hardened bearing seats in the swivel head, ivory-colored aluminum frame, height adjustment with spanner, aluminum pad or ABS pad
* Surface Treatment: Powder coating, zinc plated
* Wheel: Nylon66(Shore D70), no bearing
● Model
ㆍGD-120-F-NYN-PUS

View full details

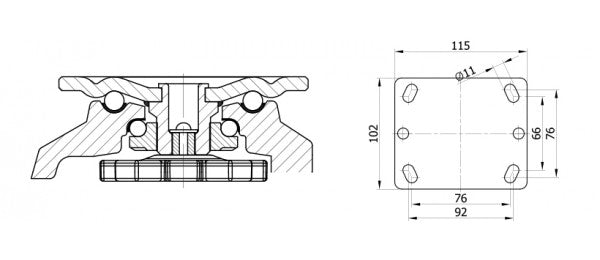

Wheel Diameter	75 mm
Width of Tread	30 mm
Hardness of Tread	70 Shore D
Size of Plate	115 x 102 mm
Plate Hole Centers	92 x 66 or 76 x 76 mm
Plate Hole	11 mm
Leveling Extent	12 mm
Offset	53 mm
Overall Height	120 mm
Temperature	-10 ~ +90 ℃
Load Capacity / 1pcs	1,000 kg
Load Capacity / 4pcs	2,000 kg
