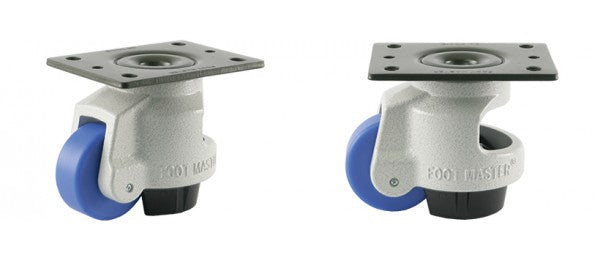

Foot Master

GD-120-PEU-F-MCN

Name: GD-120-PEU-F-MCN
Brand: Foot Master
SKU: GD-120-PEU-F-MCN-LEVELING
Availability: InStock

GD-120-PEU-F-MCN

SKU:GD-120-PEU-F-MCN-LEVELING

* Brackets: Pressed steel plate, double ball bearing with hardened bearing seats in the swivel head, ivory-colored aluminum frame, height adjustment with spanner, aluminum pad or ABS pad
* Surface Treatment: Powder coating, zinc plated
* Wheel: MC nylon(Shore D80), no bearing

● Model
ㆍGD-120-F-MCN-PEU

View full details

Wheel Diameter	74 mm
Width of Tread	30 mm
Hardness of Tread	80 Shore D

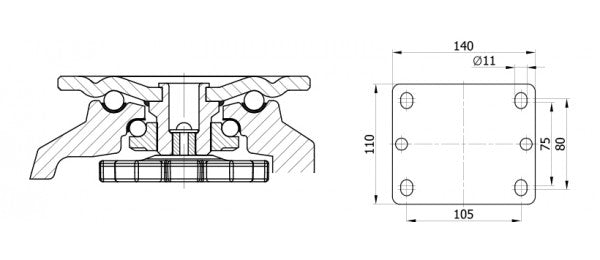

Size of Plate	140 x 110 mm
Plate Hole Centers	105 x 80 or 105 x 75 mm
Plate Hole	11 mm
Leveling Extent	12 mm
Offset	52 mm
Overall Height	120 mm
Temperature	-10 ~ +90 ℃
Load Capacity / 1pcs	1,000 kg
Load Capacity / 4pcs	2,000 kg
