Foot Master

GD-100-PUS-F-NYN

Name: GD-100-PUS-F-NYN
Brand: Foot Master
SKU: GD-100-PUS-F-NYN-LEVELING
Availability: InStock

GD-100-PUS-F-NYN

SKU:GD-100-PUS-F-NYN-LEVELING

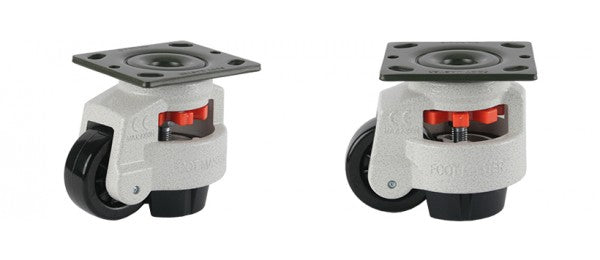

* Brackets: Pressed steel plate, double ball bearing with hardened bearing seats in the swivel head, ivory-colored aluminum frame, height adjustment with integrated orange handle or spanner, anti-vibration NBR pad
* Surface Treatment: Powder coating, zinc plated
* Wheel: Nylon66(Shore D70), no bearing
● Model
ㆍGD-100-F-NYN-PUS

View full details

Wheel Diameter	75 mm
Width of Tread	30 mm
Hardness of Tread	70 Shore D

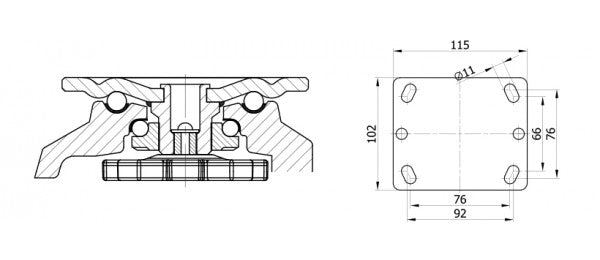

Size of Plate	115 x 102 mm
Plate Hole Centers	92 x 66 or 76 x 76 mm
Plate Hole	11 mm
Leveling Extent	12 mm
Offset	53 mm
Overall Height	120 mm
Temperature	-10 ~ +90 ℃
Load Capacity / 1pcs	800 kg
Load Capacity / 4pcs	1,600 kg

※ The NBR pad may be deflected by the load a bit.
