| Wheel Diameter | 75 mm |
| Width of Tread | 30 mm |
| Hardness of Tread | 70 Shore D |

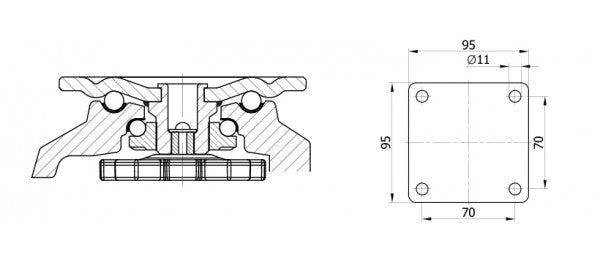

| Size of Plate | 95 x 95 mm |
| Plate Hole Centers | 70 x 70 mm |
| Plate Hole | 11 mm |
| Leveling Extent | 12 mm |
| Offset | 53 mm |
| Overall Height | 120 mm |
| Temperature | -10 ~ +90 ℃ |
| Load Capacity / 1pcs | 800 kg |
| Load Capacity / 4pcs | 1,600 kg |
※ The NBR pad may be deflected by the load a bit.
