Foot Master

GAAD-75-ASF-HUD

GAAD-75-ASF-HUD

SKU:GAAD-75-ASF-HUD-AGV-AMR

Enquire Now
* Brackets: Forged steel plate, taper roller bearing with hardened treatment in the swivel head which is advantageous to excellent durability, grease nipple, strong welded frame, self-aligned function with two swiveling axes with different swiveling radii, bolted wheel axle structure
* Surface Treatment: Powder coating,Zinc plated
* Wheel: Cast polyurethane(Shore A95), steel core, two ball bearings


● Model
ㆍGAAD-75-ASF-HUD(Swivel)
View full details
Wheel Diameter75 mm
Width of Tread30 x 2 mm
Hardness of Tread95 Shore A

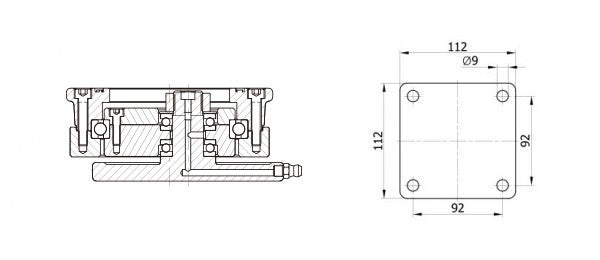

Size of Plate112 x 112 mm
Plate Hole Centers92 x 92 mm
Plate Hole9 mm
Offset10 ~ 30 mm
Overall Height130 mm
Temperature-10 ~ 90 ℃
Load Capacity / 1pcs250 kg
Load Capacity / 4pcs750 kg
