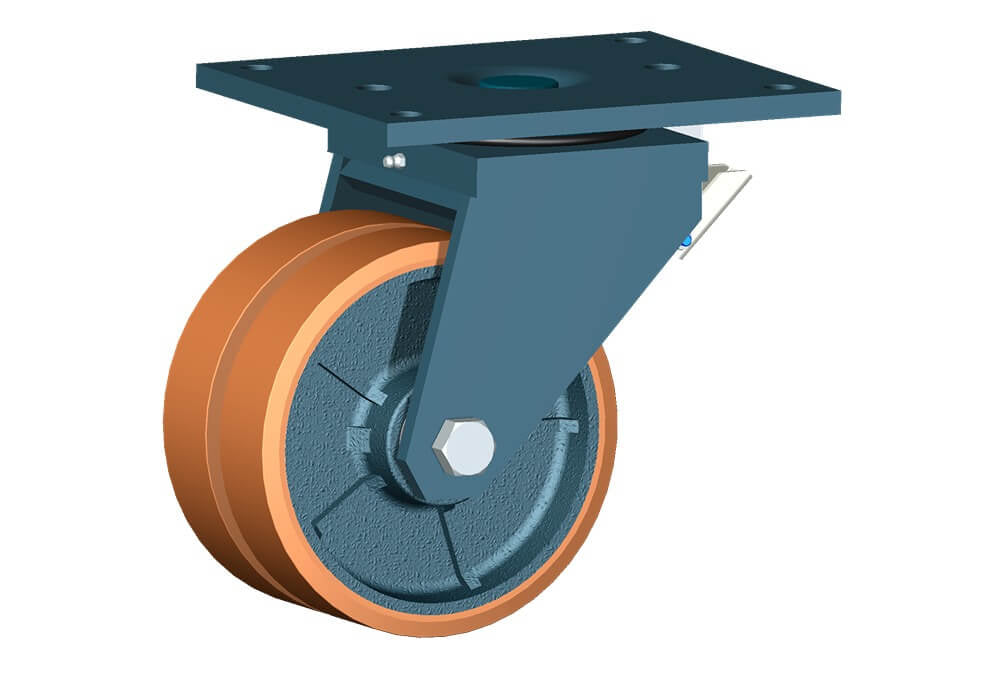

WHEEL Z 200X50+50 BB SWIVEL FORK G80 + 2-WAYS DIRECTIONAL LOCK

SKU:7474B2

Cast iron wheels with polyurethane coating 95 Sh.A available with shielded precision ball bearings.Wheel fitted with ball bearings.

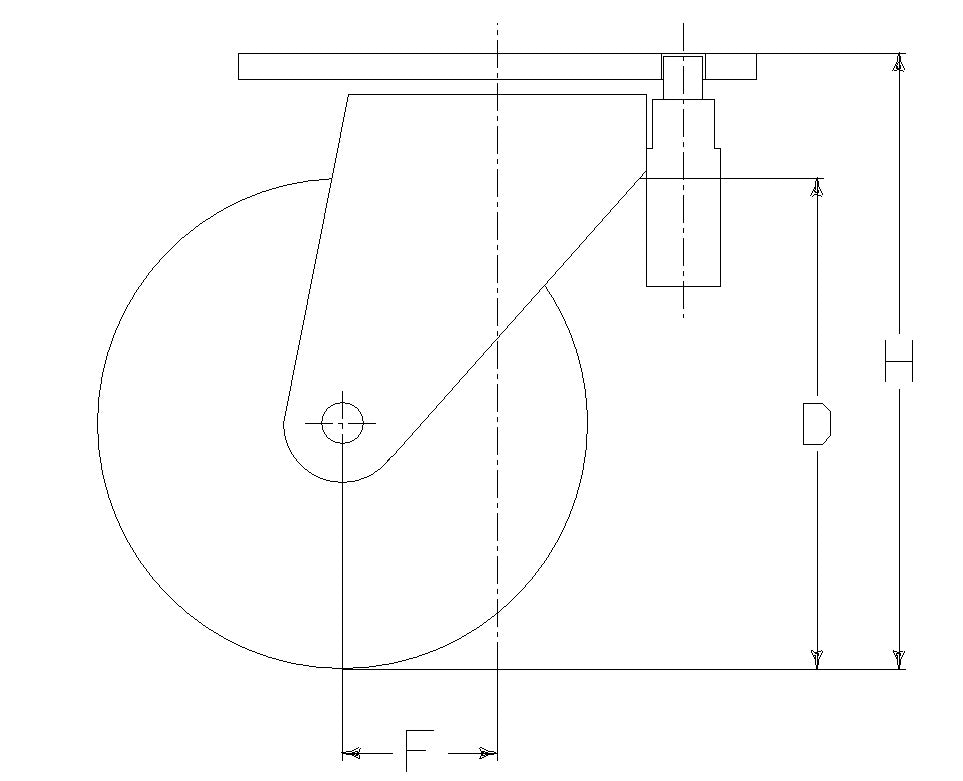

Wheel diameter	D	200 mm
Tyre width	E	50 mm
Outer faces bearings distance	V	56 mm
Overall height	H	270 mm

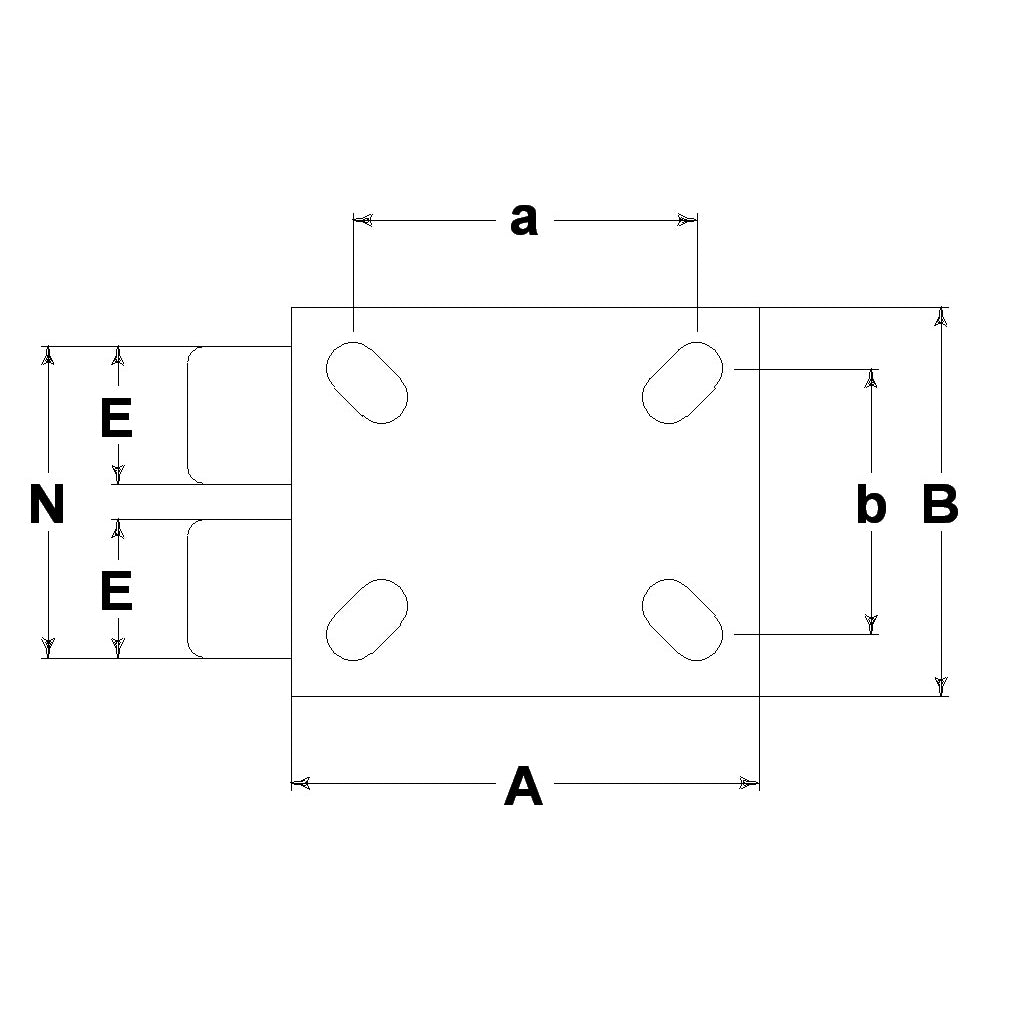

Top plate outer dimensions	AxB	255x205 mm
Bolt hole spacing	axb	210x160 mm
Fixing bolt diameter	g	M16
Offset	F	70 mm
Load Capacity		2000 kg
