LAG

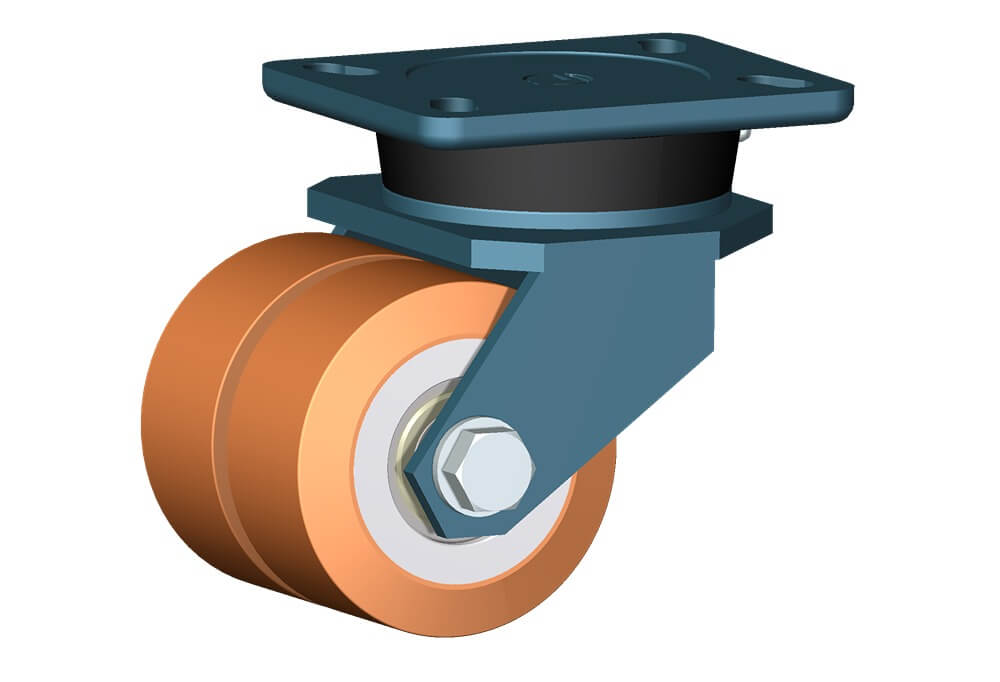

WHEEL Z 100X50+50 CC SWIVEL FORK G80

Name: WHEEL Z 100X50+50 CC SWIVEL FORK G80
Brand: LAG
SKU: 7450
Availability: InStock

WHEEL Z 100X50+50 CC SWIVEL FORK G80

SKU:7450

Cast iron wheels with polyurethane coating 95 Sh.A available with shielded precision ball bearings.Wheel fitted with ball bearings.Steel wheel centre.

View full details

Wheel diameter	D	100 mm
Tyre width	E	50 mm
Outer faces bearings distance	V	44 mm
Overall height	H	147 mm

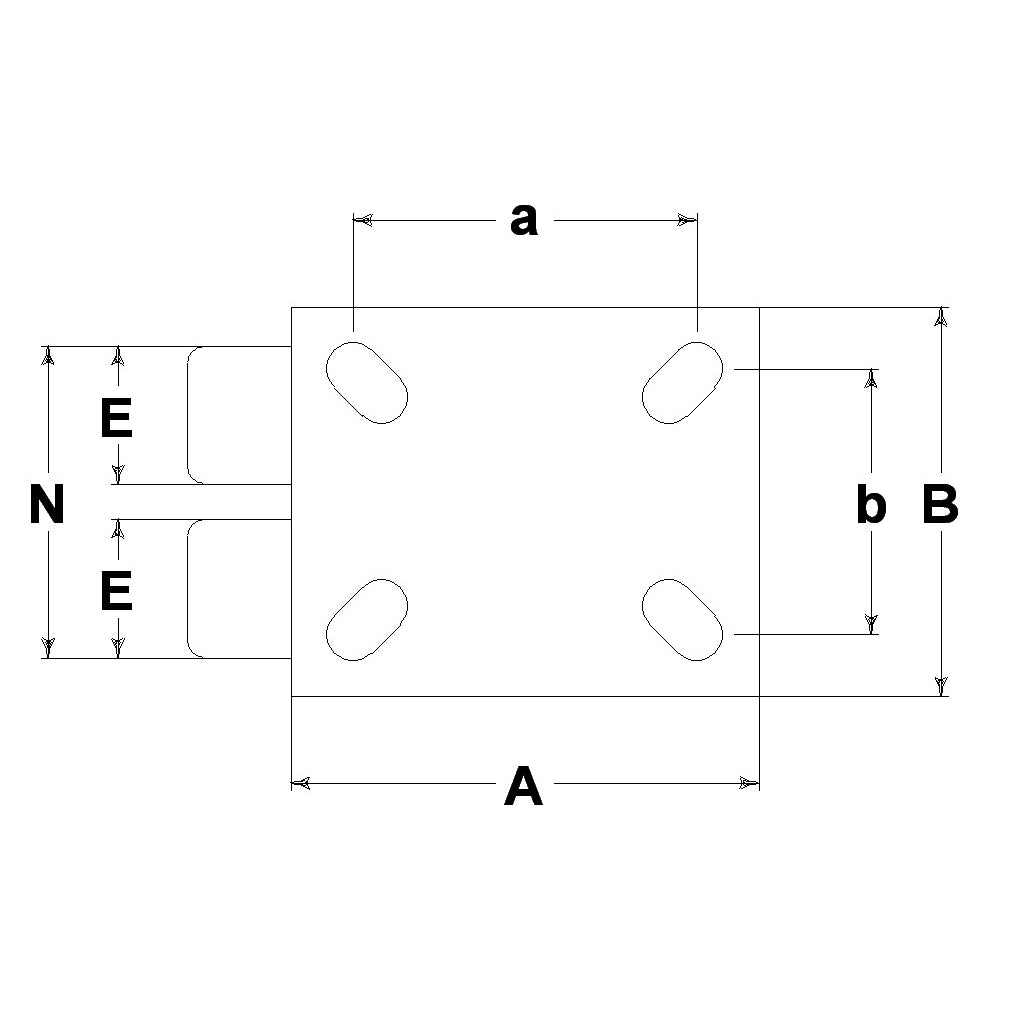

Top plate outer dimensions	AxB	135x110 mm
Bolt hole spacing	axb	105x75 mm
Bolt hole spacing	axb	105x80 mm
Fixing bolt diameter	g	M12
Offset	F	55 mm
Load Capacity		900 kg
