LAG

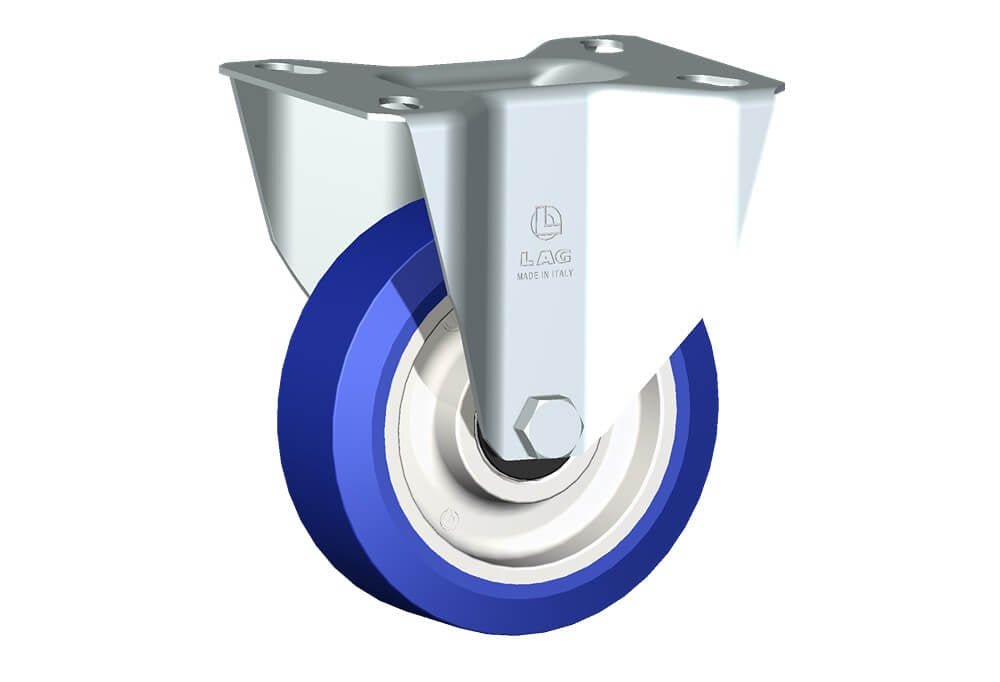

WHEEL AS 125X40/40 BB FIXED M22/50

SKU:36515

Wheels with cast soft polyurethane coating 87 Sh.A on polyamide 6 center.Wheel fitted with ball bearings.

Wheel diameter	D	125 mm
Tyre width	E	40 mm
Outer faces bearings distance	V	38 mm
Overall height	H	159 mm
Top plate outer dimensions	AxB	135x110 mm
Bolt hole spacing	axb	96x56 mm
Bolt hole spacing	axb	105x75 mm
Bolt hole spacing	axb	105x80 mm
Fixing bolt diameter	g	M10
Load Capacity		200 kg
