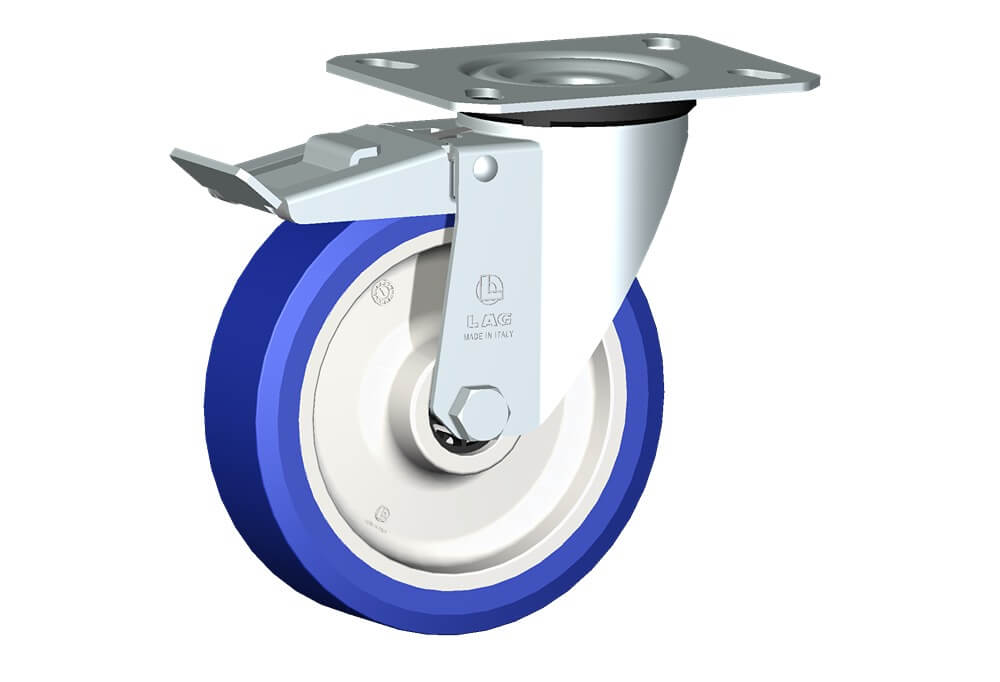

WHEEL AS 150X40/50 ROLLER BRGS SWIVEL FORK M22 + BRAKE

WHEEL AS 150X40/50 ROLLER BRGS SWIVEL FORK M22 + BRAKE

36454FR

Enquire Now

Wheels with cast soft polyurethane coating 87 Sh.A on polyamide 6 center.Wheel fitted with standard roller bearing.

View full details
Wheel diameterD150 mm
Tyre widthE40 mm
Overall heightH181 mm
Top plate outer dimensionsAxB135x110 mm
Bolt hole spacingaxb96x56 mm
Bolt hole spacingaxb105x75 mm
Bolt hole spacingaxb105x80 mm
Fixing bolt diametergM10
OffsetF51 mm
Load Capacity200 kg
