LAG

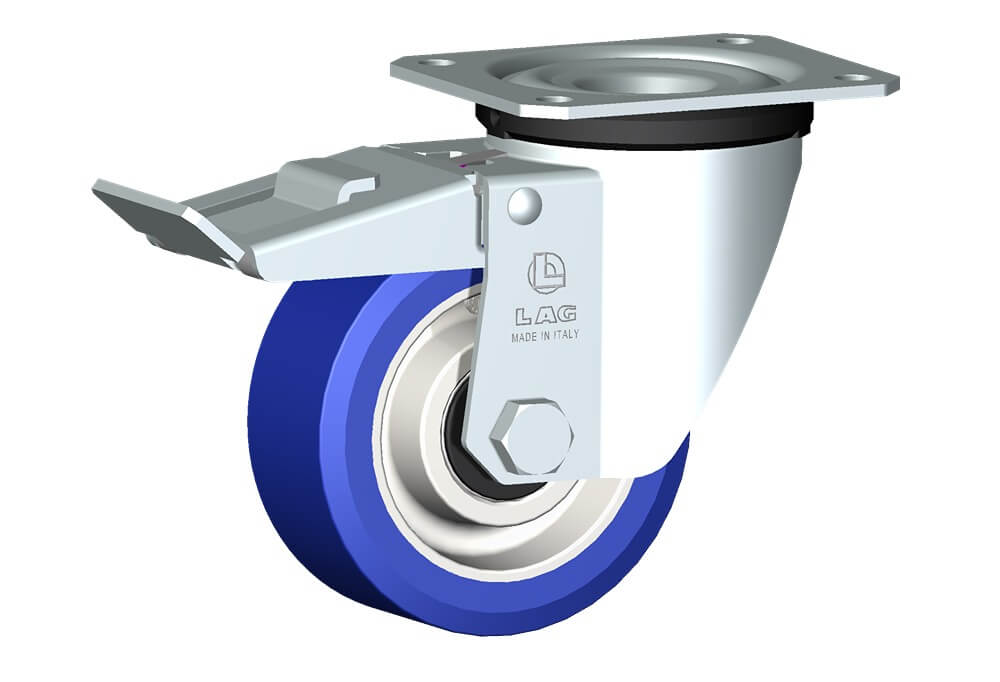

WHEEL AS 100X40/40 BB SW M22L/50+BRAKE

SKU:36406FR

Wheels with cast soft polyurethane coating 87 Sh.A on polyamide 6 center.Wheel fitted with ball bearings.

Wheel diameter	D	100 mm
Tyre width	E	40 mm
Outer faces bearings distance	V	38 mm
Overall height	H	129 mm
Top plate outer dimensions	AxB	102x83 mm
Bolt hole spacing	axb	80x60 mm
Fixing bolt diameter	g	M8
Offset	F	46 mm
Load Capacity		200 kg
