LAG

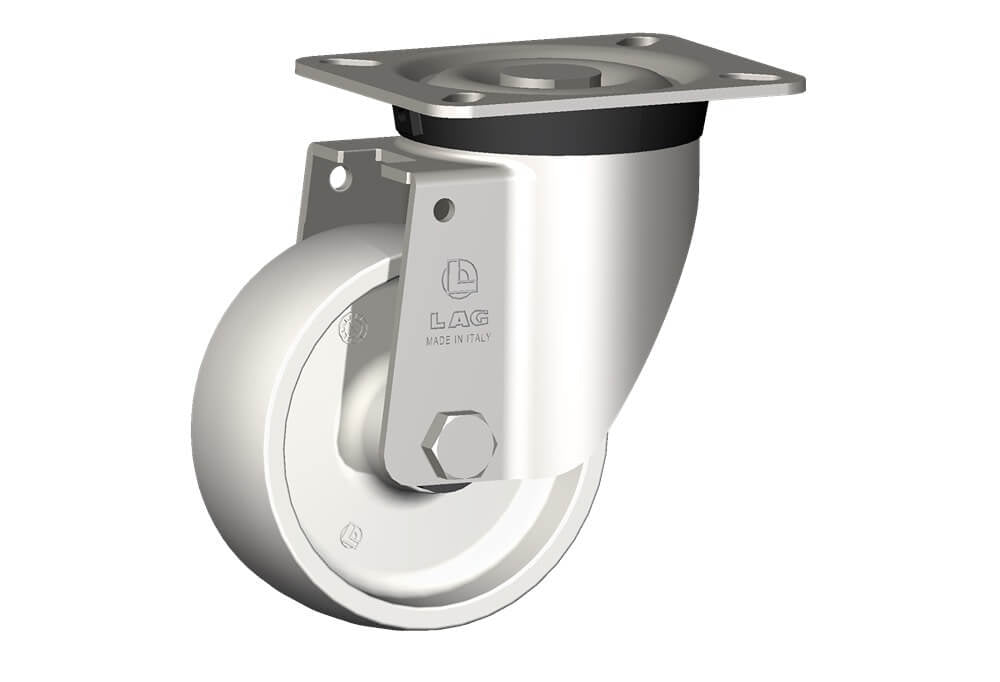

WHEEL P 100X40/40 PLAIN BORE SWIVEL FORK X40L/50

Name: WHEEL P 100X40/40 PLAIN BORE SWIVEL FORK X40L/50
Brand: LAG
SKU: 33652
Availability: InStock

WHEEL P 100X40/40 PLAIN BORE SWIVEL FORK X40L/50

SKU:33652

Monolitic polyammide 6 wheels available with standard shielded or stainless steel precision ball bearings; standard or stainless steel roller bearing; plain bore.Plain bore wheel.

View full details

Wheel diameter	D	100 mm
Tyre width	E	40 mm
Overall height	H	137 mm
Top plate outer dimensions	AxB	105x85 mm
Bolt hole spacing	axb	76x55 mm
Bolt hole spacing	axb	80x60 mm
Fixing bolt diameter	g	M8
Offset	F	42 mm
Load Capacity		250 kg
