LAG

WHEEL P 100X37/40 HD BBX SWIVEL X40/50

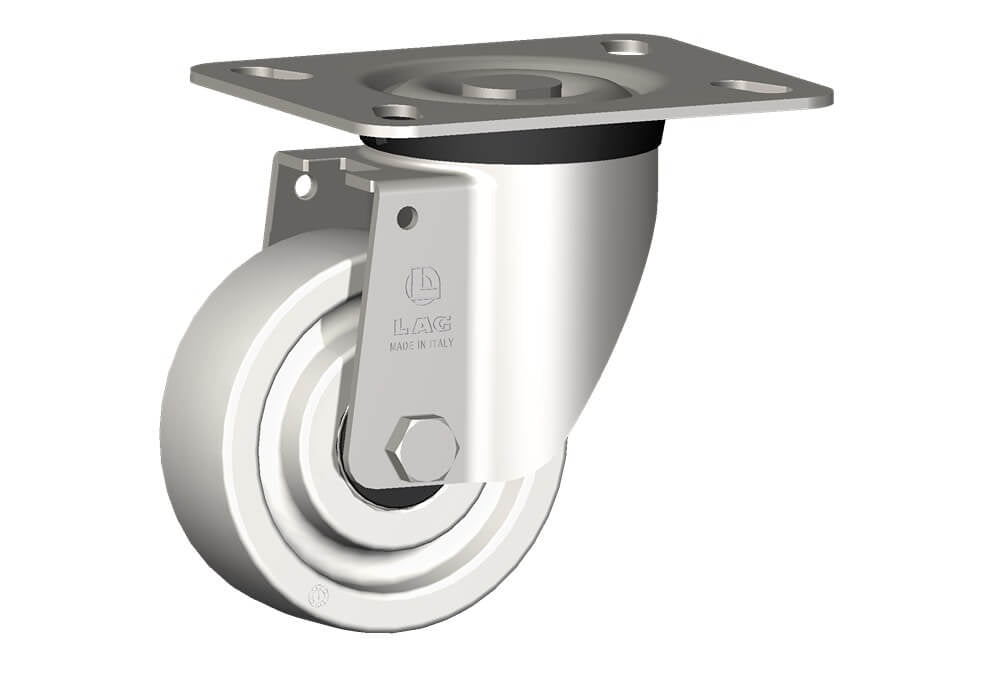

Name: WHEEL P 100X37/40 HD BBX SWIVEL X40/50
Brand: LAG
SKU: 33606
Availability: InStock

WHEEL P 100X37/40 HD BBX SWIVEL X40/50

SKU:33606

Monolitic polyammide 6 wheels available with standard shielded or stainless steel precision ball bearings; standard or stainless steel roller bearing; plain bore.Wheel fitted with precision stainless steel ballbearings, sealed (2RS).

View full details

Wheel diameter	D	100 mm
Tyre width	E	37 mm
Outer faces bearings distance	V	38 mm
Overall height	H	137 mm
Top plate outer dimensions	AxB	135x110 mm
Bolt hole spacing	axb	96x56 mm
Bolt hole spacing	axb	105x75 mm
Bolt hole spacing	axb	105x80 mm
Fixing bolt diameter	g	M10
Offset	F	42 mm
Load Capacity		370 kg
