1 3

LAG

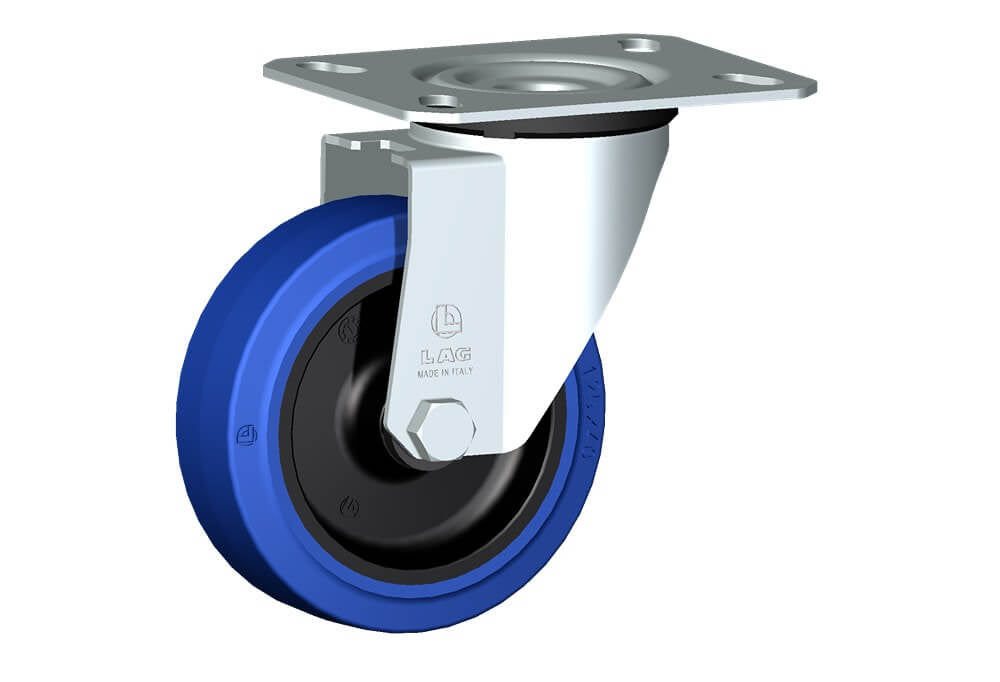

RUOTA LB 125X40/40 FP SPG M22/50

RUOTA LB 125X40/40 FP SPG M22/50

32109B

Enquire Now

Wheels with black polyamide 6 centre, blue elastic non-marking rubber mould-on solid tyre available with ball bearings, standard or stainless steel roller bearings od plain bore.Plain bore wheel.

View full details
Wheel diameterD125 mm
Tyre widthE40 mm
Overall heightH159 mm
Top plate outer dimensionsAxB135x110 mm
Bolt hole spacingaxb96x56 mm
Bolt hole spacingaxb105x75 mm
Bolt hole spacingaxb105x80 mm
Fixing bolt diametergM10
OffsetF49 mm
Load Capacity200 kg
