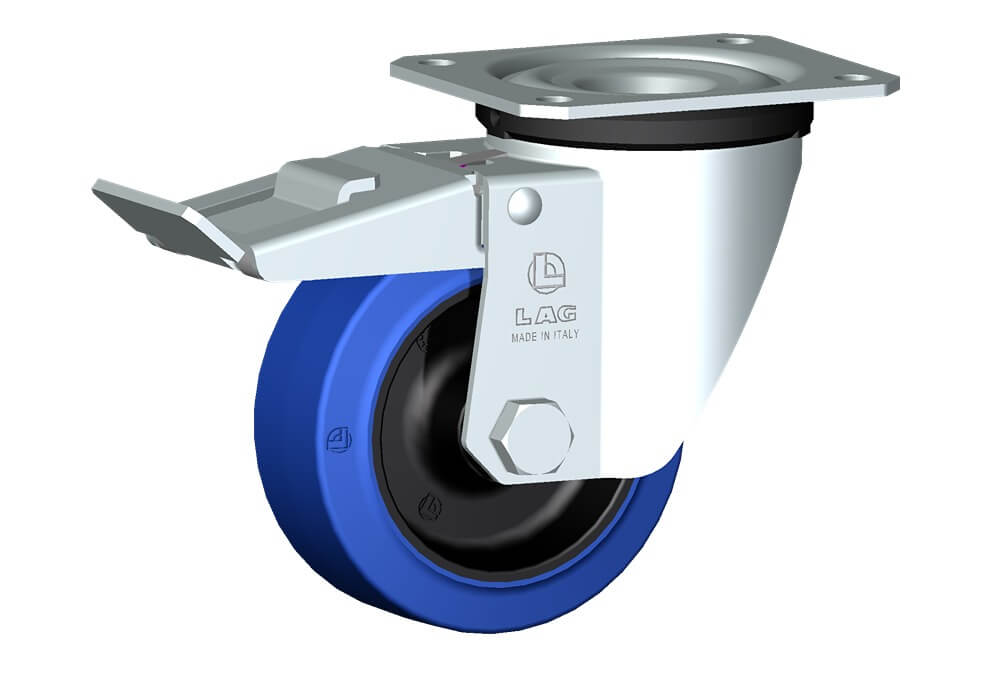

WHEEL LB 100X40/40 PLAIN BORE SWIVEL FORK M22L/50 + BRAKE

Name: WHEEL LB 100X40/40 PLAIN BORE SWIVEL FORK M22L/50 + BRAKE
Brand: LAG
SKU: 32103BFR
Availability: InStock

WHEEL LB 100X40/40 PLAIN BORE SWIVEL FORK M22L/50 + BRAKE

SKU:32103BFR

Enquire Now

Wheels with black polyamide 6 centre, blue elastic non-marking rubber mould-on solid tyre available with ball bearings, standard or stainless steel roller bearings od plain bore.Plain bore wheel.

View full details

Wheel diameter	D	100 mm
Tyre width	E	40 mm
Overall height	H	129 mm
Top plate outer dimensions	AxB	102x83 mm
Bolt hole spacing	axb	80x60 mm
Fixing bolt diameter	g	M8
Offset	F	46 mm
Load Capacity		150 kg
