LAG

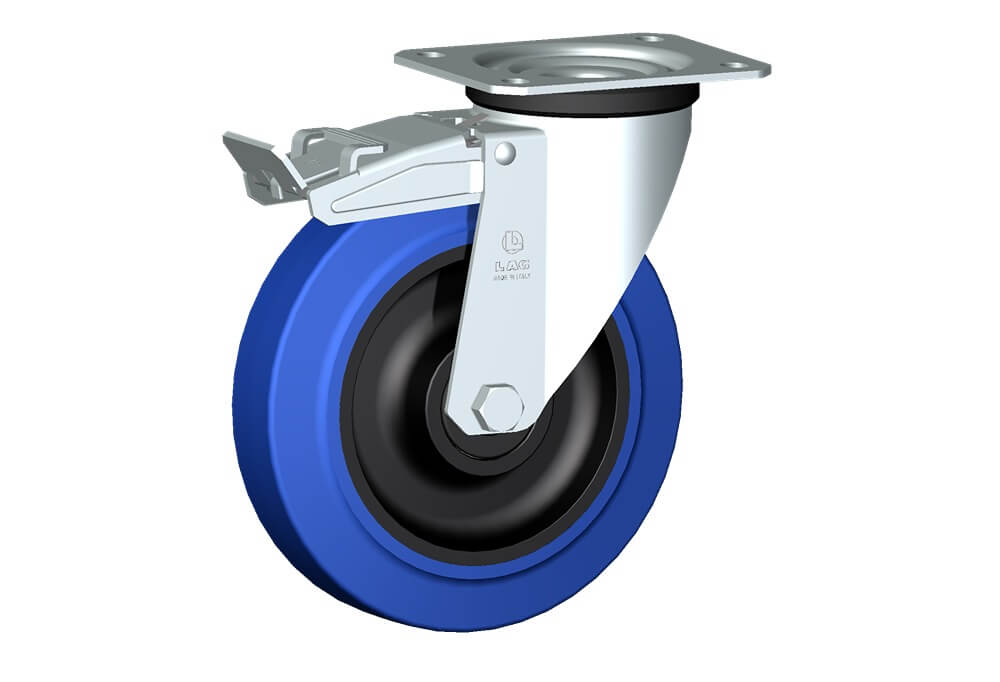

WHEEL LB 200X50/60 BB SWIVEL FORK M22 + BRAKE

Name: WHEEL LB 200X50/60 BB SWIVEL FORK M22 + BRAKE
Brand: LAG
SKU: 32040BFR
Availability: InStock

WHEEL LB 200X50/60 BB SWIVEL FORK M22 + BRAKE

SKU:32040BFR

Wheels with black polyamide 6 centre, blue elastic non-marking rubber mould-on solid tyre available with ball bearings, standard or stainless steel roller bearings od plain bore.Wheel fitted with ball bearings.

View full details

Wheel diameter	D	200 mm
Tyre width	E	50 mm
Outer faces bearings distance	V	54 mm
Overall height	H	240 mm
Top plate outer dimensions	AxB	135x110 mm
Bolt hole spacing	axb	105x75 mm
Bolt hole spacing	axb	105x80 mm
Fixing bolt diameter	g	M10
Offset	F	59 mm
Load Capacity		300 kg
